SELECT A DIAGRAM

01 - Cover

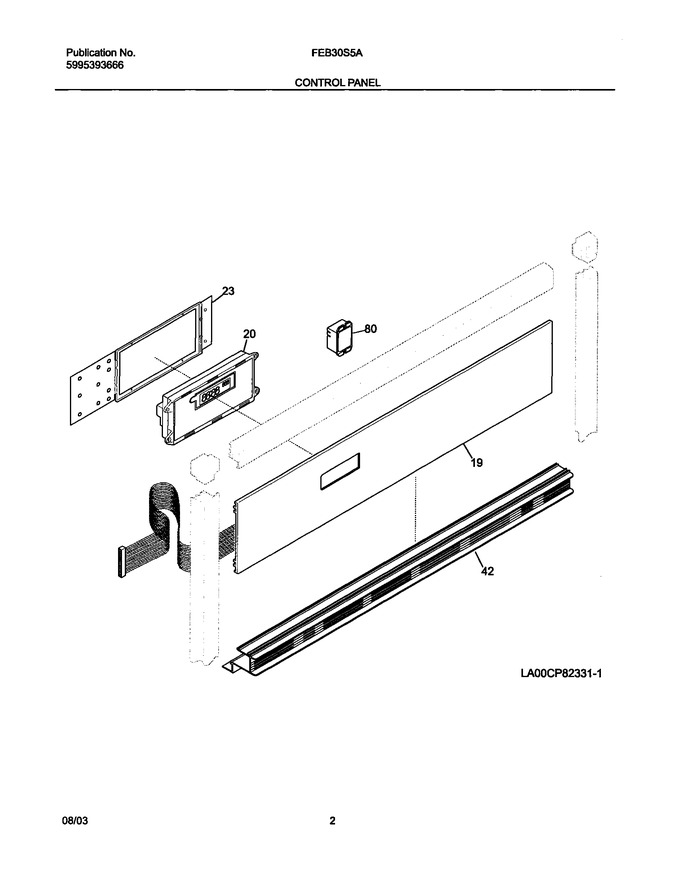

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030139		Panel,control ,white		Appelez-nous	-
23	318111602		Bracket,clock & Relay		Appelez-nous	-
42	318027401		Trim-vent, White		Appelez-nous	-
F20	318010900		Clock/timer, Eoc		Appelez-nous	-
F80	318111501		Relay,convection ,oven Light ,(1)				$ 85.10
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303288566		Screw,8 X 1/4   (Replaces: 5303323130)				$ 2.12

    View Diagram in Separate Window       Print Part List
