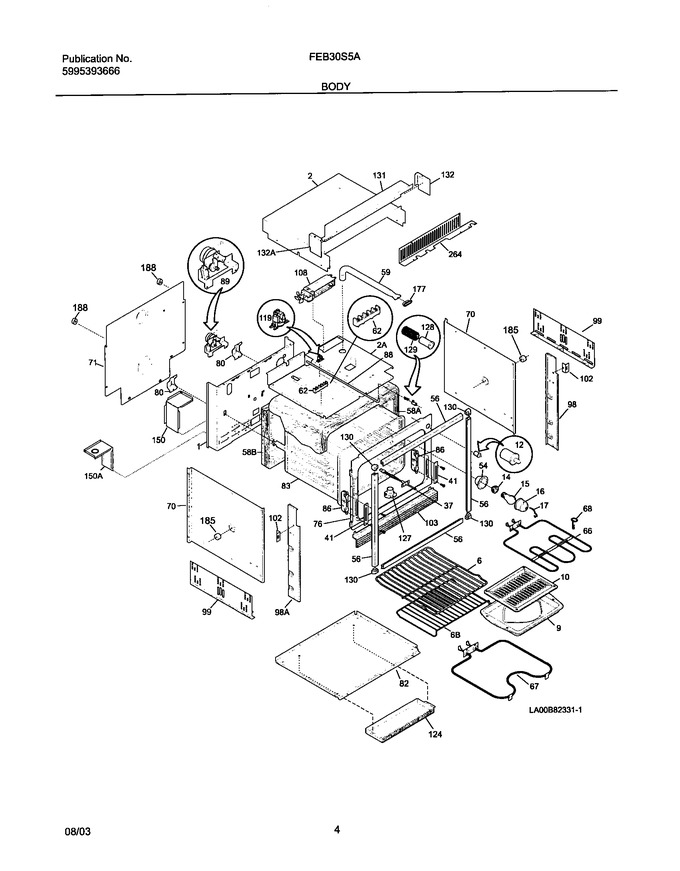

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Panel,main Back |
|
- | |||||
| 2 | 318102101 | Shield-oven Top |
|
- | |||||
| 6 | 318025314 | Rack,oven (Replaces: 318025308) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 56 | 318083501 | Trim,top & Bottom ,white |
|
- | |||||
| 59 | 318072504 | Tube-oven Vent |
|
- | |||||
| 66 | 318255605 | Element,broil ,2750 W (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071201 | Shield-wire |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318072302 | Shield,oven Bottom |
|
- | |||||
| 83 | 318089613 | Liner,oven |
|
$ 205.64 | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 98 | 318029201 | Trim-side, Inner, Rh |
|
- | |||||
| 99 | 318055420 | Support-adjustable |
|
$ 44.73 | |||||
| 102 | 318090900 | Support-oven Front,(2) |
|
- | |||||
| 103 | 318028501 | Trim,base ,white |
|
- | |||||
| 124 | 318076903 | Box-vent |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 130 | 318070801 | End Cap-trim,white |
|
- | |||||
| 131 | 318102302 | Cover,control Housing |
|
- | |||||
| 132 | 318101704 | End,cover ,rh ,control Housing |
|
- | |||||
| 150 | 318072205 | Bracket,support ,lh |
|
$ 72.35 | |||||
| 177 | 318053810 | Gasket,vent |
|
$ 29.40 | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 188 | 318531702 | Spacer (Replaces: 318014110) |
|
$ 9.93 | |||||
| 2A | 318071703 | Shield-oven Top |
|
- | |||||
| 58A | 318133744 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133769 | Insulation,oven Back |
|
- | |||||
| 6B | 318025314 | Shelf-oven (Replaces: 318025400) |
|
Immediately | $ 148.70 | ||||
| 98A | 318029203 | Trim-side, Inner, Lh |
|
- | |||||
| F108 | 318073001 | Motor-fan |
|
- | |||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F12 | 318394803 | Switch,light (Replaces: 318089913) |
|
Immediately | $ 44.23 | ||||
| F132 | 318101705 | End,cover ,lh ,control Housing |
|
- | |||||
| F150 | 318072204 | Bracket,support ,rh |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| F67 | 318255006 | Element,bake ,3000 W (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| F89 | 318095956 | Motor,latch Assy ,w/brkt & Switch (Replaces: 318095936) |
|
Immediately | $ 143.83 | ||||
| NI | 318078527 | Box & Wires Assy |
|
- | |||||
| NI | 3015722 | Clip-wire |
|
- | |||||
| NI | 3051807 | Button Plug |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303302745 | Screw,10-16x1-1/8 ,square Drive |
|
$ 8.35 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303288566 | Screw,8 X 1/4 (Replaces: 5303323130) |
|
$ 2.12 | |||||
| NI | 318120711 | Switch |
|
$ 87.68 |
