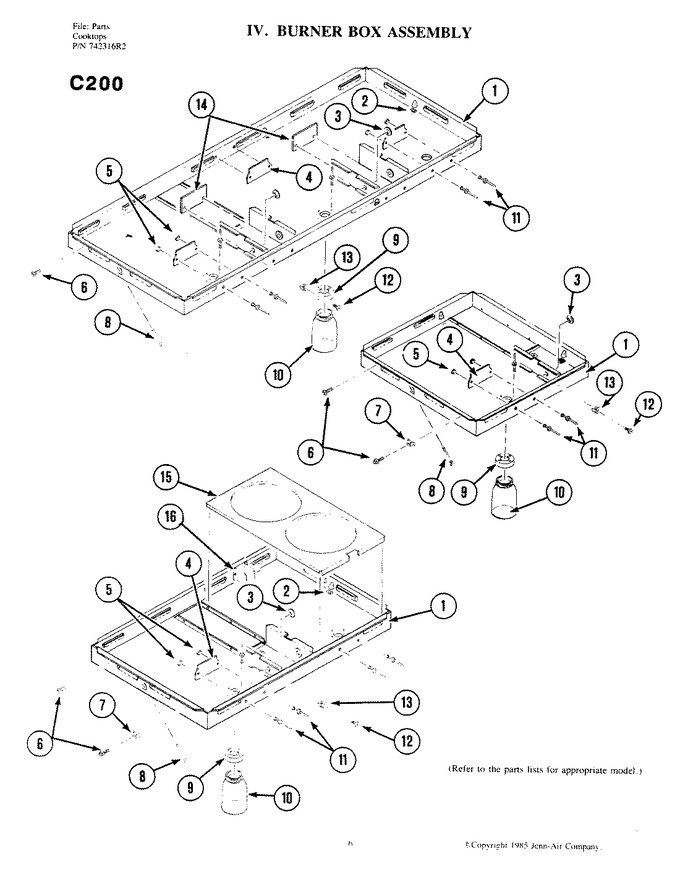

01 - Blower Assembly
02 - Burner Box Assembly
03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-07463A | Burner Box (Replaces: 700661) | 1 |
|
$ 456.75 | ||||
| 2 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 3 | Y707695 | Bushing | 1 |
|
- | ||||
| 4 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 5 | Y707664 | Washer | 1 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 7 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 8 | Y707121 | Screw | 1 |
|
- | ||||
| 9 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 10 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 | ||||
| 11 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 1 |
|
$ 12.14 | ||||
| 12 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 13 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 14 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 15 | Y707822 | Insert, Burner Box | 1 |
|
- |
