View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Assembly
02 - Burner Box Assembly
03 - Escutcheon Assembly

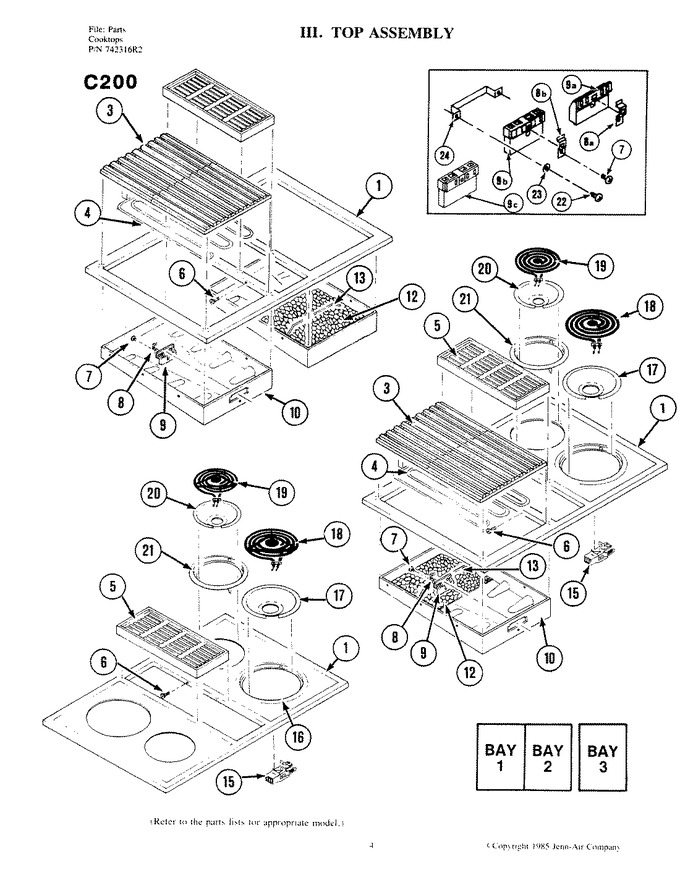

04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-04770A | Top (Replaces: 700669) | 1 |
|
$ 88.35 | ||||
| 3 | 707886 | Grate | 1 |
|
- | ||||
| 4 | 700491 | Element, Grill | 1 |
|
- | ||||
| 5 | Y708922 | Vent Grill | 1 |
|
- | ||||
| 6 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 7 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 8 | 74004835 | Clip (Replaces: 715121) | 1 |
|
$ 11.37 | ||||
| 9 | Y715120 | Receptacle | 1 |
|
$ 24.18 | ||||
| 10 | Y701491 | Wire, Red | 1 |
|
- | ||||
| 10 | Y701953 | Pan, Grill (w/brackets) | 1 |
|
- | ||||
| 10 | Y701489 | Contact/wire Assy. (blu-rt) | 1 |
|
- | ||||
| 10 | Y701490 | Wire, Black | 1 |
|
- | ||||
| 10 | Y701493 | 4 Wire Kit+ | 1 |
|
- | ||||
| 10 | Y701492 | Wire, Yellow | 1 |
|
- | ||||
| 12 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 13 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 15 | 12001676 | Kit, Wire Element (Replaces: 700154) | 1 |
|
Immediately | $ 28.45 | |||
| 16 | WPY707453 | Adaptor, Ring (Replaces: Y707453) | 1 |
|
Immediately | $ 85.57 | |||
| 17 | 715878 | Pan, Drip (8``) | 1 |
|
Immediately | $ 21.16 | |||
| 18 | WPY04100166 | Element, Conv.(8`` 240v) (Replaces: 715928) | 1 |
|
Immediately | $ 47.21 | |||
| 19 | WPY04100165 | Element, Conv.(6`` 240v) (Replaces: 715927) | 1 |
|
Immediately | $ 50.62 | |||
| 20 | 715877 | Pan, Drip (6``) | 1 |
|
Immediately | $ 19.39 | |||
| 21 | WPY707454 | Adaptor, Ring (6``) (Replaces: Y707454) | 1 |
|
Immediately | $ 80.69 |
