SELECT A DIAGRAM

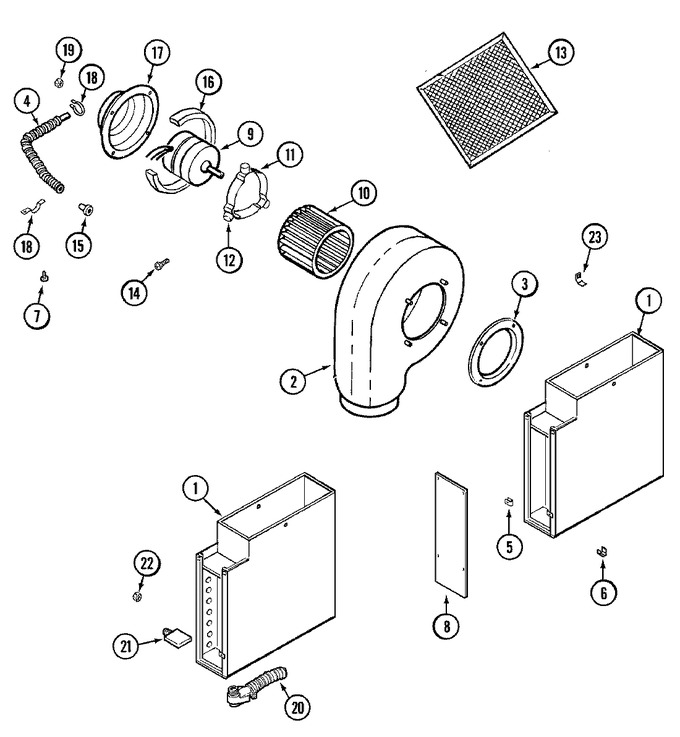

01 - Blower Plenum


02 - Burner Box Assembly


03 - Control Assembly


04 - Top Assembly


05 - Top Assembly (c206)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y701840		Plenum	1	Appelez-nous	-
2	712008		Scroll, Blower Assy.	1	Appelez-nous	-
3	702889		Locknut Cap, W/nylon Insert	1	Appelez-nous	-
3	Y704758		Ring, Inlet	1	Appelez-nous	-
4	Y707758		Conduit	1	Appelez-nous	-
5	Y707831		Clip	1	Appelez-nous	-
6	Y704762		Retainer	1	Appelez-nous	-
6	Y704761		Ring, Restrictor	1	Appelez-nous	-
6	701958		Clip, Tinnerman	1	Appelez-nous	-
7	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
8	Y707681		Plate, Cover	1	Appelez-nous	-
9	Y705032		Motor, Blower	1			$ 254.76
10	WPY707985		Wheel, Blower   (Replaces: Y707985)	1		Immediately	$ 145.55
11	Y707393		Band, Motor	1	Appelez-nous	-
12	WP71003558		Isolator   (Replaces: Y708926)	1			$ 11.47
13	WP707929		Filter, Grease   (Replaces: 707929)	1		Immediately	$ 44.51
13	707407		Screw	1			$ 6.42
14	Y707402		Screw	1	Appelez-nous	-
14	707161		Nut	1	Appelez-nous	-
15	712311		Bushing	1	Appelez-nous	-
16	Y715957		Foam, Urethane	1	Appelez-nous	-
17	Y704968		Cover, Motor	1	Appelez-nous	-
17	707766		Connector	1	Appelez-nous	-
18	715780		Clamp, Cable	1	Appelez-nous	-
18	Y707688		Retainer, Filter	1	Appelez-nous	-
19	WP71001171		Screw   (Replaces: Y701379)	1			$ 6.26
19	WPY707702		Locknut   (Replaces: Y707702)	1		Immediately	$ 6.26
20	700518		Balance Clip	1		Immediately	$ 13.02
20	Y712550		Motor Cover Assy	1	Appelez-nous	-
20	715955		Bal Clip 010	1	Appelez-nous	-
20	704363		Cable, Wire Assembly	1	Appelez-nous	-
20	Y707335		Clip	1	Appelez-nous	-
21	Y715443		Breaker, Circuit	1	Appelez-nous	-
22	715615		Washer, Lock	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
