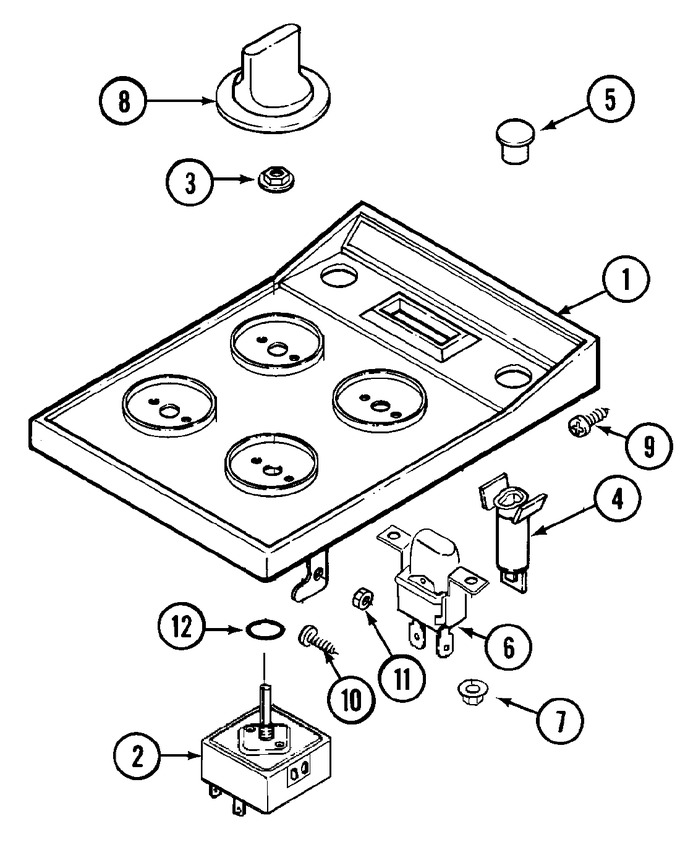

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704210 | Escutcheon | 1 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 3 | Y705023 | Palnut | 1 |
|
- | ||||
| 4 | 704209 | Light, Pilot | 1 |
|
- | ||||
| 5 | Y704607 | Lens | 1 |
|
- | ||||
| 6 | Y704573 | Switch, Fan (blk) | 1 |
|
- | ||||
| 7 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 8 | WPY703899 | Knob, Switch (blk) (Replaces: Y703899) | 1 |
|
Immediately | $ 21.09 | |||
| 9 | Y700834 | Clip | 1 |
|
- | ||||
| 9 | Y704864 | Screw | 1 |
|
- | ||||
| 10 | Y703935 | Screw | 1 |
|
- | ||||
| 11 | 703795 | Wire, Blue | 1 |
|
- | ||||
| 11 | Y04100035 | Nut, Push | 1 |
|
- | ||||
| 12 | Y700833 | O Ring | 1 |
|
- | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
