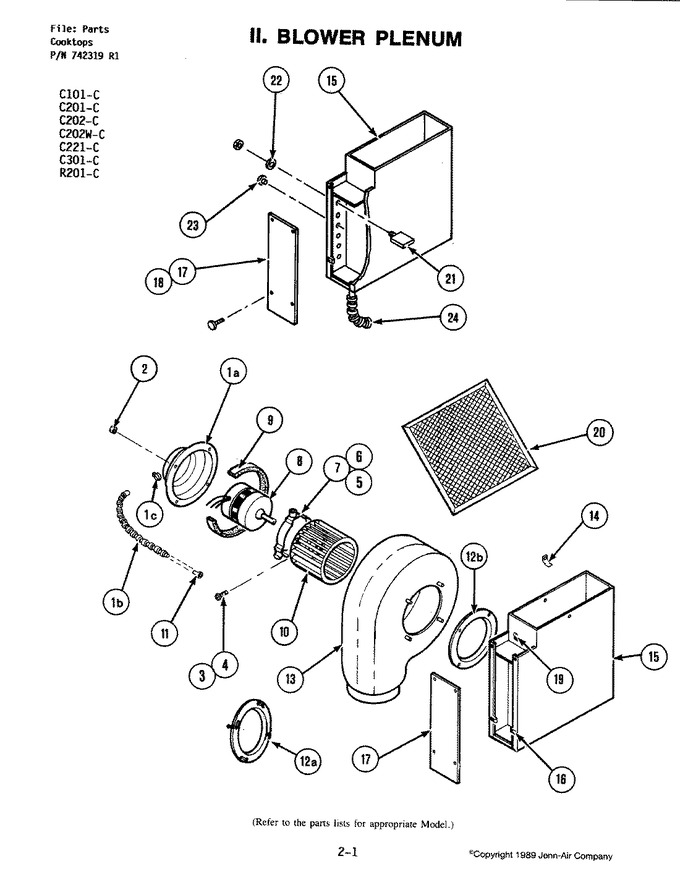

01 - Blower Plenum (c221-c)


02 - Burner Box Assembly (c221-c)


03 - Escutcheon Assembly (c221-c)


04 - Top Assembly (c221-c)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	707766		Connector	1-6	Appelez-nous	-
1	715780		Clamp, Cable	1-6	Appelez-nous	-
1	Y707335		Clip	1-6	Appelez-nous	-
1	708863		Cover,motor	1-6	Appelez-nous	-
1	DE81-03521A		Motor Cover Assembly   (Replaces: 700027)	1-6			$ 208.41
1	Y707758		Conduit	1-6	Appelez-nous	-
2	WPY707702		Locknut   (Replaces: Y707702)	1-6		Immediately	$ 6.26
3	707161		Nut	1-6	Appelez-nous	-
4	Y707402		Screw	1-6	Appelez-nous	-
5	WP71003558		Isolator   (Replaces: Y708926)	1-6			$ 11.47
6	707407		Screw	1-6			$ 6.42
7	Y707393		Band, Motor	1-6	Appelez-nous	-
8	707704K		Motor   (Replaces: Y707704)	1-6		Immediately	$ 352.01
9	Y715957		Foam, Urethane	1-6	Appelez-nous	-
10	WPY707985		Wheel, Blower   (Replaces: Y707985)	1-6		Immediately	$ 145.55
11	708185		Bushing	1-6	Appelez-nous	-
12	Y702295		Ring, Inlet	1-6	Appelez-nous	-
13	Y712053		Blower Scroll Kit	1-6	Appelez-nous	-
14	Y707688		Retainer, Filter	1-6	Appelez-nous	-
15	WP71001171		Screw   (Replaces: Y707745)	1-6			$ 6.26
15	712216		Plenum	1-6	Appelez-nous	-
16	701958		Clip, Tinnerman	1-6	Appelez-nous	-
17	Y707681		Plate, Cover	1-6	Appelez-nous	-
18	WP59002061		Screw   (Replaces: Y707172)	1-6			$ 6.98
19	Y707831		Clip	1-6	Appelez-nous	-
20	WP707929		Filter, Grease   (Replaces: 707929)	1-6		Immediately	$ 44.51
21	702006		Breaker Circuit, 20amp	1-5	Appelez-nous	-
21	Y715443		Breaker, Circuit	6	Appelez-nous	-
22	715615		Washer, Lock	6	Appelez-nous	-
23	700885		Button, Plug	6	Appelez-nous	-
24	712270		Cable, Wire Assembly	6	Appelez-nous	-
24	DE81-05590A		Box, Breaker   (Replaces: 702005)	1-5			$ 473.58
24	700739		Cable, Wire Assembly	1-5	Appelez-nous	-
