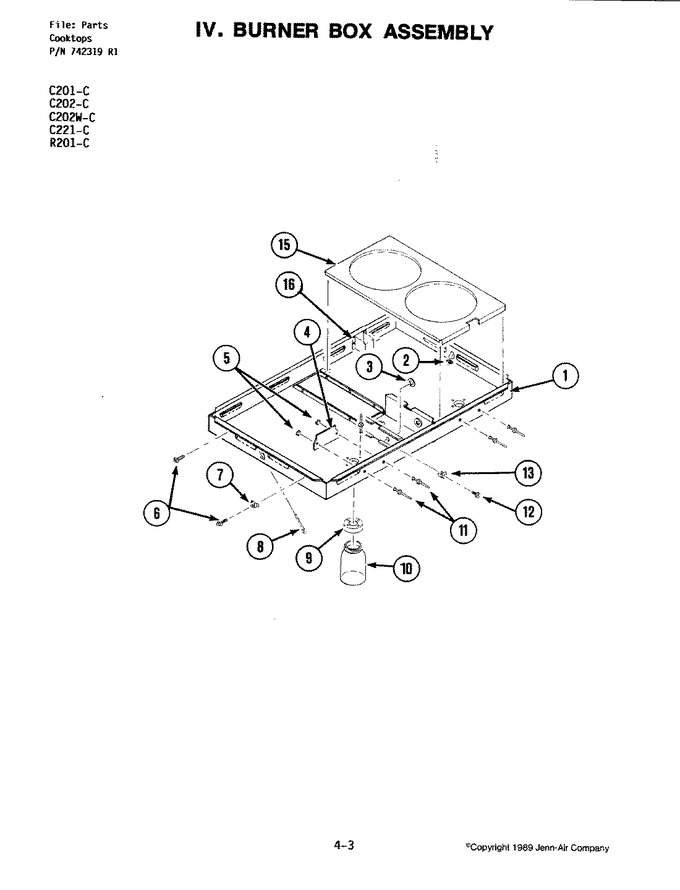

01 - Blower Plenum (c221-c)


02 - Burner Box Assembly (c221-c)


03 - Escutcheon Assembly (c221-c)


04 - Top Assembly (c221-c)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701992		Box, Burner	1	Appelez-nous	-
2	M0282009		Nut,square   (Replaces: Y707124)	1			$ 12.06
3	Y707695		Bushing	1	Appelez-nous	-
4	DE81-07680A		Insulator   (Replaces: 701995)	1			$ 112.56
5	Y707664		Washer	1	Appelez-nous	-
6	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
8	Y707121		Screw	1	Appelez-nous	-
9	Y707870		Lid, Jar	1	Appelez-nous	-
10	WPY707869		Jar, Drain   (Replaces: Y707869)	1			$ 61.43
11	WP210720		Rivet, Jar Lid   (Replaces: Y707128)	1			$ 12.14
12	701933		Screw	1	Appelez-nous	-
13	Y700672		Standoff----na	1	Appelez-nous	-
NI	DE81-08289A		Wire ( To Right Cutout)   (Replaces: 703559)	6			$ 280.87
NI	707746		Insulator	1	Appelez-nous	-
NI	702018		Wire ( To Cutout)	1	Appelez-nous	-
NI	DE81-04688A		Wire (to Left Limiter)   (Replaces: 703561)	6			$ 352.83
NI	700727		Wire (to Left Limiter)	1	Appelez-nous	-
NI	701925		Limiter, Thermal	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
