SELECT A DIAGRAM
01 - Cover

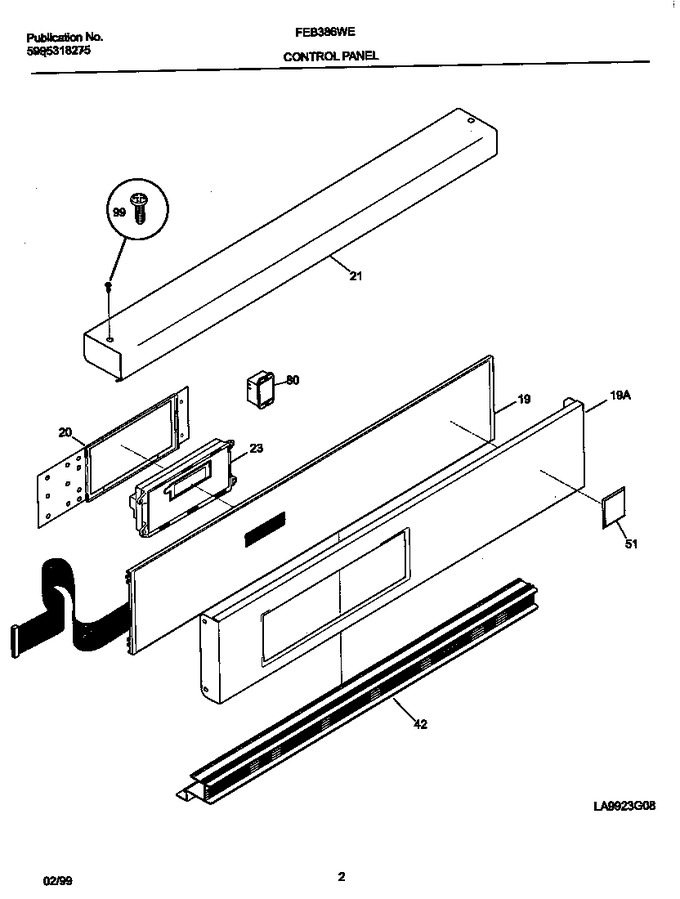

02 - Control Panel
03 - Cavity/elements
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318030205 | Panel-control, Black |
|
- | |||||
| 19 | 318041702 | Panel-decorative With Nameplate |
|
- | |||||
| 20 | 318010700CP | Clock/timer (Replaces: 318010700) |
|
- | |||||
| 23 | 318111602 | Bracket-timer |
|
- | |||||
| 42 | 318027409 | Trim-vent, Black |
|
- | |||||
| 51 | 316082300 | Nameplate |
|
- | |||||
| 80 | 318111500 | Relay |
|
- | |||||
| 99 | 5303300265 | Screw, 8-18 X 1/2 |
|
$ 15.17 | |||||
| *79840 | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 | |||||
| *79841 | 5303300414 | Spacer, Cork & Rubber |
|
$ 13.18 |
