SELECT A DIAGRAM

01 - Cover


02 - Control Panel

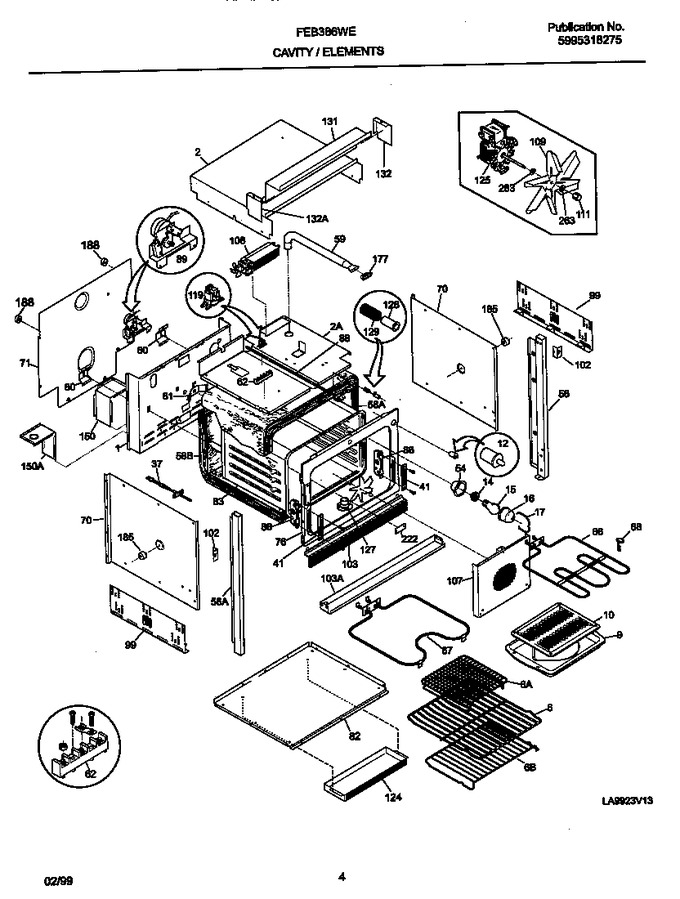

03 - Cavity/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303310527		Back-main		Appelez-nous	-
2	318102100		Shield-oven Top		Appelez-nous	-
2	318071700		Shield-oven Top		Appelez-nous	-
6	318345205		Rack-oven   (Replaces: 318025301)			Immediately	$ 138.78
6	318025314		Shelf-oven   (Replaces: 318025401)			Immediately	$ 148.70
6	5303311206		Rack, Broiler Pan		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
14	316116400		Socket - Light   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer-lens		Appelez-nous	-
37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-light		Appelez-nous	-
56	318029100		Trim-bodyside,stainless		Appelez-nous	-
56	318029101		Trim-bodyside,stainless		Appelez-nous	-
58	5303310538		Insulation-oven Bake		Appelez-nous	-
58	5303310539		Insulation		Appelez-nous	-
59	318072504		Tube-oven Front		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
66	318255605		Element-broil   (Replaces: 5303310513)			Immediately	$ 192.78
67	318255006		Element-bake   (Replaces: 5303310512)			Immediately	$ 185.14
68	5304403015		Support-element				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
71	318071200		Shield-wire		Appelez-nous	-
76	318056202		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303320846		Plate,oven Mtg				$ 51.50
82	318072300		Shield		Appelez-nous	-
83	318089609		Liner-oven Assy		Appelez-nous	-
86	5303310524		Channel-hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
89	5304404899		Motor-latch		Appelez-nous	-
99	318055420		Support-adjustable				$ 44.73
102	318090900		Support-fixation		Appelez-nous	-
103	318028500		Trim,base ,black		Appelez-nous	-
103	318027700		Trim-base,stainless		Appelez-nous	-
107	318119600		Cover-fan		Appelez-nous	-
108	318073001		Motor-fan		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
119	318004900		Switch,thermal				$ 60.25
124	318076903		Box-vent		Appelez-nous	-
125	5303311202		Motor-convection				$ 114.07
127	318317100		Adaptor Assy   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
131	318102301		Cover-control Housing		Appelez-nous	-
132	318101800		End-cover, Rh		Appelez-nous	-
132	318101801		End-cover, Lh		Appelez-nous	-
150	318072204		Bracket-support, Lh		Appelez-nous	-
150	318072205		Bracket-support, Rh				$ 72.35
177	318053800		Gasket Vent		Appelez-nous	-
185	318531800		Spacer-oven Shield   (Replaces: 318014700)				$ 12.76
188	08007817		Spacer-rear Wall		Appelez-nous	-
222	318080000		Plate Hole Convection Element		Appelez-nous	-
263	5303322885		Spacer		Appelez-nous	-
*79842	318120702		Switch-latch				$ 111.67
*79843	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*79844	3015722		Clip-wire		Appelez-nous	-
*79845	5303300265		Screw-control Panel				$ 15.17
*79846	5303308449		Fastener		Appelez-nous	-
*79847	5303323136		Screw-ground		Appelez-nous	-
*79848	5303323139		Screw,10-24 X 29/32				$ 13.46
*79849	5303323277		Screw (8-18x13/32)				$ 8.66
*79850	5303324184		Screw-8 X 5/16			Immediately	$ 14.18
*79851	5303323137		Screw,10-32 X 17/32				$ 11.88
*79852	5308007939		Plug, Door Liner		Appelez-nous	-
*79853	318078511		Box & Wire Assy		Appelez-nous	-
*79854	3051807		Button Plug		Appelez-nous	-
*79855	5303302745		Screw <10-16x-1-1/8>				$ 8.35

    View Diagram in Separate Window       Print Part List
