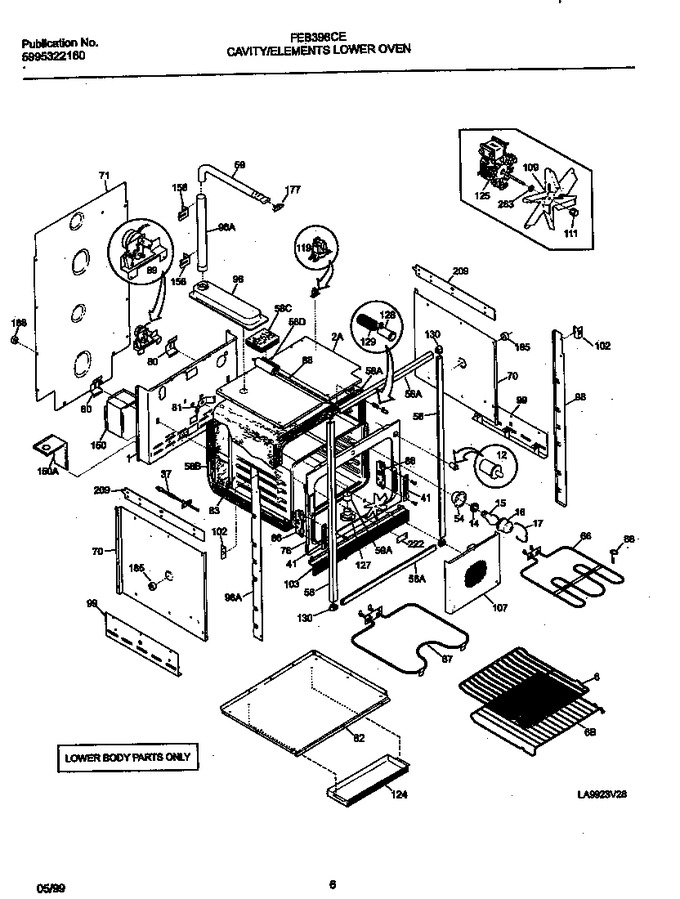

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303310527 | Back-main |
|
- | |||||
| 2 | 318071704 | Shield-oven Top |
|
- | |||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 6 | 318025314 | Shelf-oven (Replaces: 318025400) |
|
Immediately | $ 148.70 | ||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318083504 | Trim-bodyside,white |
|
- | |||||
| 56 | 318083501 | Top Trim,white ,(4) |
|
- | |||||
| 58 | 5303310539 | Insulation Wrapper |
|
- | |||||
| 58 | 5303316994 | Insulation, Oven Vent |
|
- | |||||
| 58 | 318106002 | Insulation |
|
- | |||||
| 58 | 5303310538 | Insulation Oven Back |
|
- | |||||
| 59 | 318072504 | Tube-oven Vent |
|
- | |||||
| 59 | 5303320844 | Tube,oven Vent |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071211 | Shield-wire |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 82 | 318072302 | Shield-insulation |
|
- | |||||
| 83 | 318089607 | Liner-oven,comp. |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 89 | 5304409801 | Motor-latch |
|
- | |||||
| 96 | 3016325 | Duct,oven Vent ,center |
|
- | |||||
| 96 | 5303317197 | Duct,oven Vent ,assy |
|
- | |||||
| 98 | 318029213 | Trim-bodyside,black ,lh |
|
- | |||||
| 98 | 318029211 | Trim-bodyside,black ,rh |
|
- | |||||
| 99 | 318055410 | Bracket-side,adjustable ,(2) |
|
- | |||||
| 103 | 318028501 | Trim,base ,white |
|
- | |||||
| 107 | 318119600 | Cover-fan |
|
- | |||||
| 109 | 5303311203 | Fan Blade |
|
$ 42.84 | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 124 | 318076903 | Box-vent |
|
- | |||||
| 125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 130 | 318070801 | End Cap-trim,white |
|
- | |||||
| 156 | 5303317198 | Bracket-oven Vent |
|
- | |||||
| 177 | 318053800 | Gasket Vent |
|
- | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 188 | 08007817 | Spacer, (2) |
|
- | |||||
| 222 | 318080000 | Plate,oven Temp Probe |
|
- | |||||
| 263 | 5303322885 | Spacer |
|
- | |||||
| 270 | 318132500 | Insulation Alumin |
|
- | |||||
| *19486 | 318120701 | Switch |
|
- | |||||
| *19487 | 318120702 | Switch-latch |
|
$ 111.67 | |||||
| *19488 | 318034404 | Trim & Ends |
|
- | |||||
| *19490 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *19491 | 5303320845 | Washer-oven Vent |
|
- | |||||
| *19492 | 5303212886 | Tape |
|
- | |||||
| *19493 | 5303323139 | Screw,10-24 X 29/32 |
|
$ 13.46 | |||||
| *19494 | 5303300265 | Screw,8-18 X 1/2 ,chrome |
|
$ 15.17 | |||||
| *19495 | 318086200 | Retainer-plate |
|
- | |||||
| *19496 | 5303311528 | Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black |
|
- | |||||
| *19497 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| 150A | 318072205 | Bracket-support, Rh |
|
$ 72.35 | |||||
| 150B | 318072204 | Bracket-support, Lh |
|
- |
