SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Upper Body


04 - Lower Body


05 - Door

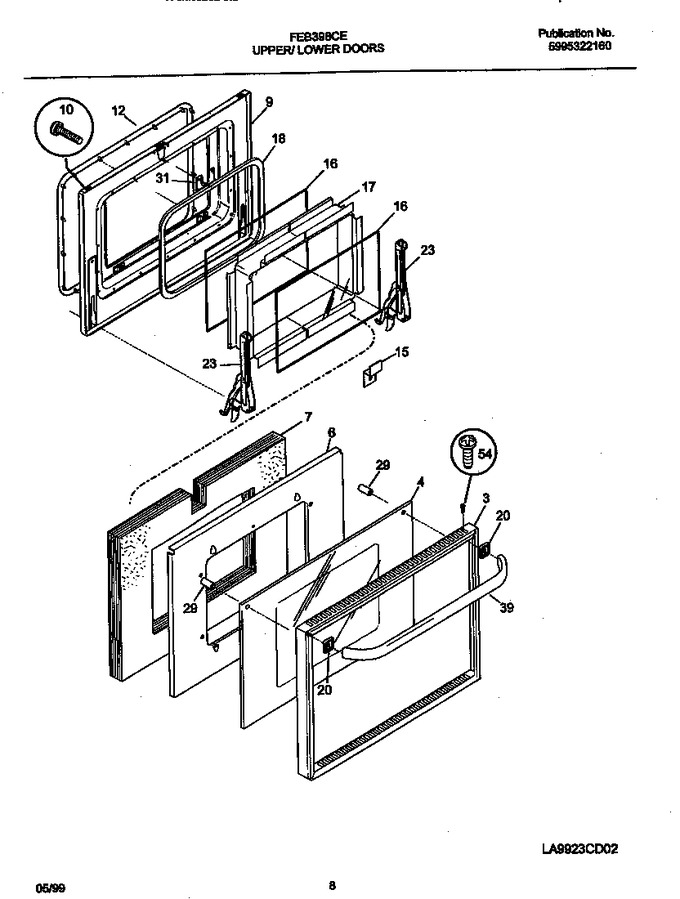

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026125		Trim-oven Door,white		Appelez-nous	-
4	318041304		Glass-oven Door,white ,outer		Appelez-nous	-
6	318056811		Shield-air Wash		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048606		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	318053103		Seal-oven Door			Immediately	$ 150.03
15	318091102		Bracket-glass,(3)		Appelez-nous	-
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
27	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
39	316091111		Handle-door,white ,oven		Appelez-nous	-
54	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*19482	5303316982		Foam Seal,seal ,(3)		Appelez-nous	-
*19483	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*19484	5303323277		Screw (8-18x13/32)				$ 8.66
*19485	5303300414		Spacer, Cork & Rubber				$ 13.18

    View Diagram in Separate Window       Print Part List
