SELECT A DIAGRAM

01 - Cover

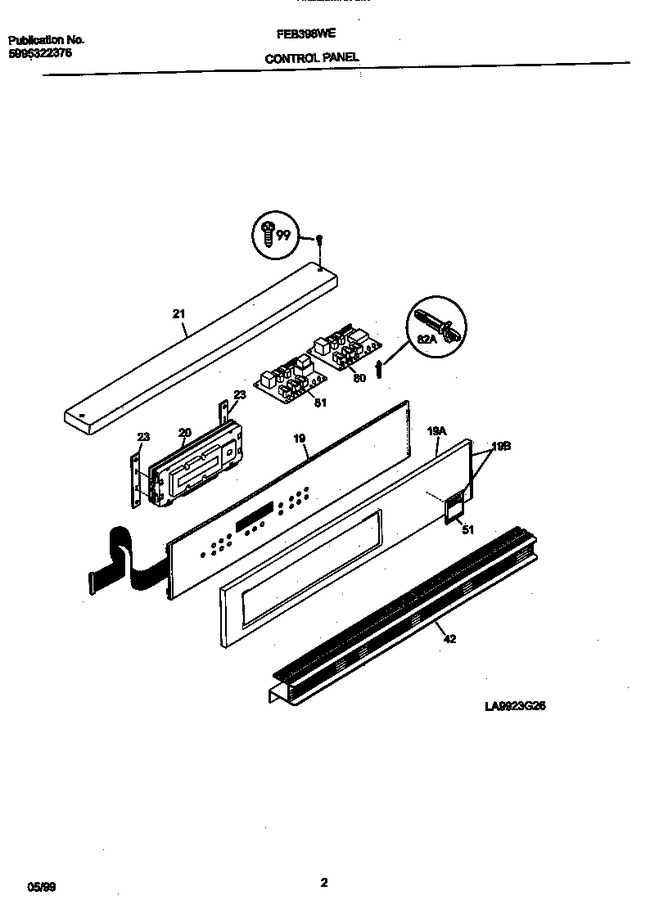

02 - Control Panel


03 - Upper Body


04 - Lower Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030207		Panel-control		Appelez-nous	-
19	318041705		Panel & Name Plate Ay		Appelez-nous	-
20	318010501		Clock/timer, Eoc				$ 666.75
21	318029700		Trim-top, Stainless Steel		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	318027410		Trim,vent ,black				$ 404.51
51	316082300		Nameplate, Black		Appelez-nous	-
80	318022001		Board-relay			Immediately	$ 489.91
81	318022002		Board-relay, Transformer				$ 482.74
82	5303317199		Support, Snap-in, (3)				$ 36.75
*17720	5303300414		Spacer, Cork & Rubber				$ 13.18
*17721	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*17722	3201861		Screw, 6 X 3/8				$ 0.76
*17723	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*17724	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*17725	318083107		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
