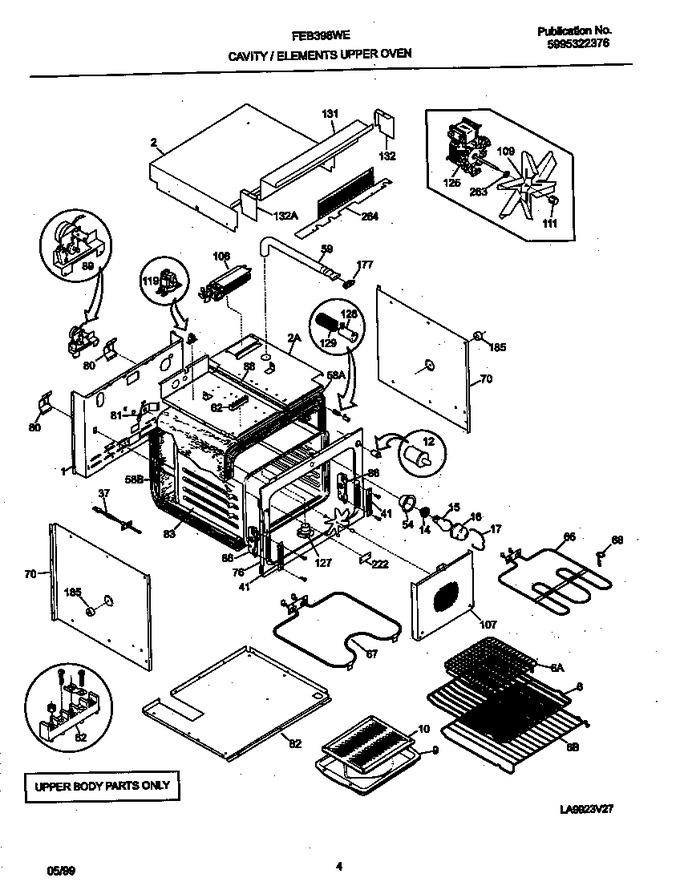

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066400 | Back-main |
|
- | |||||
| 2 | 318102101 | Shield-oven Top |
|
- | |||||
| 2 | 318071705 | Shield-oven Top |
|
- | |||||
| 6 | 5303311206 | Rack, Broiler Pan |
|
- | |||||
| 6 | 318345205 | Rack-oven (Replaces: 318025301) |
|
Immediately | $ 138.78 | ||||
| 6 | 318025314 | Shelf-oven (Replaces: 318025401) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 58 | 5303310538 | Insulation Oven Back |
|
- | |||||
| 58 | 5303310539 | Insulation Wrapper |
|
- | |||||
| 59 | 318072506 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 82 | 318072301 | Shield-oven Bottom |
|
- | |||||
| 83 | 318089609 | Liner-oven Assy,comp. |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 89 | 5304409801 | Motor-latch |
|
- | |||||
| 102 | 318090900 | Support-oven Front,(2) |
|
- | |||||
| 107 | 318119600 | Cover-fan |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 109 | 5303311203 | Fan Blade |
|
$ 42.84 | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318102301 | Cover-control Housing |
|
- | |||||
| 132 | 318101801 | End-cover,control Hsg ,lh |
|
- | |||||
| 132 | 318101800 | End-cover,control Hsg ,rh |
|
- | |||||
| 177 | 318053800 | Gasket Vent |
|
- | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 222 | 318080000 | Plate,oven Temp Probe |
|
- | |||||
| 263 | 5303322885 | Spacer |
|
- | |||||
| 264 | 318143815 | Xx<hidden Wires Shie |
|
- | |||||
| *17743 | 318120702 | Switch-latch |
|
$ 111.67 | |||||
| *17744 | 318120701 | Switch |
|
- | |||||
| *17745 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *17746 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *17747 | 5303304015 | Washer, Padded |
|
- | |||||
| *17748 | 5303320845 | Washer-oven Vent |
|
- | |||||
| *17749 | 5303311528 | Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black |
|
- | |||||
| *17750 | 5303323136 | Screw-ground |
|
- | |||||
| *17751 | 5303323139 | Screw,10-24 X 29/32 |
|
$ 13.46 | |||||
| *17752 | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| *17753 | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| *17754 | 5304407813 | Washer |
|
- |
