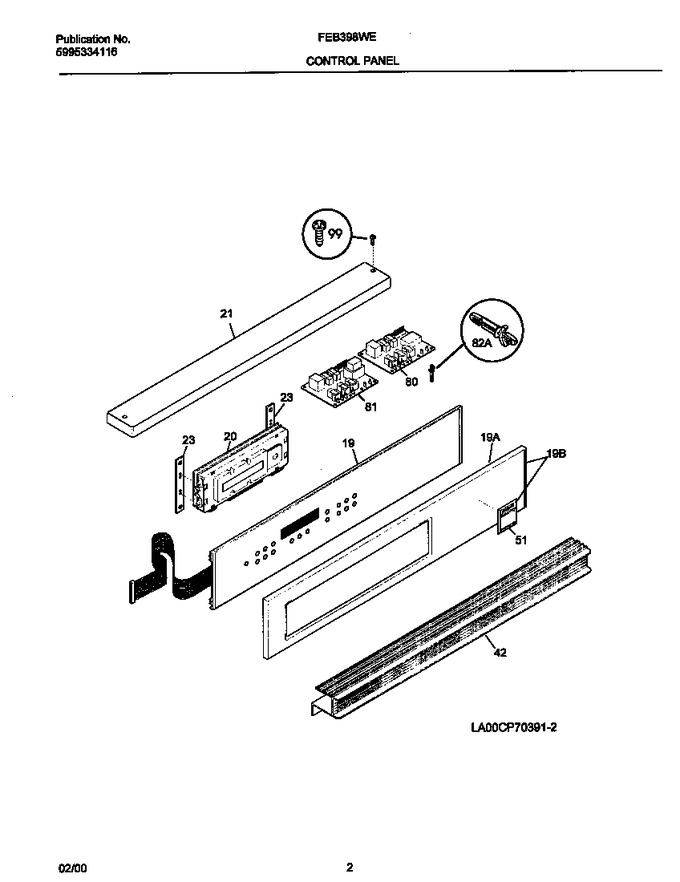

02 - Control Panel


03 - Upper Cavity/elements


04 - Lower Cavity/elements


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030207		Panel-control		Appelez-nous	-
19	318041705		Panel & Name Plate Ay		Appelez-nous	-
20	318010501		Clock/timer, Eoc				$ 666.75
21	318029700		Trim-top, Stainless Steel		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	318027410		Trim,vent ,black				$ 404.51
51	316082300		Nameplate, Black		Appelez-nous	-
80	318022001		Relay Board			Immediately	$ 489.91
81	318022002		Relay Board,transformer				$ 482.74
82	5303317199		Support, Snap-in, (3)				$ 36.75
99	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*95280	3201861		Screw, 6 X 3/8				$ 0.76
*95281	08002868		Screw 10 X 24 X 1/2				$ 14.18
*95282	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*95283	318082905		Wiring Harness		Appelez-nous	-
*95284	318143814		Shield-wire		Appelez-nous	-
*95285	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*95286	5303300414		Spacer, Cork & Rubber				$ 13.18
*95287	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*95288	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*95289	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*95290	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*95291	5303323136		Screw-ground		Appelez-nous	-
*95292	318083107		Wiring Harness		Appelez-nous	-
*95293	318083183		Wiring Harness		Appelez-nous	-
