SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Upper Cavity/elements


04 - Lower Cavity/elements

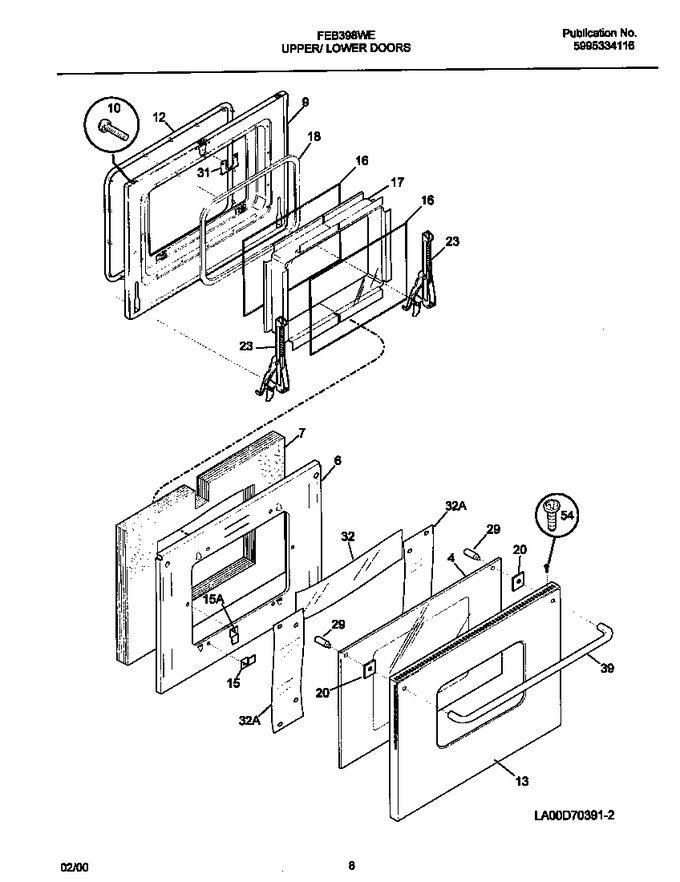

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318041210		Glass-oven Door, Black, Outer				$ 199.55
6	318056811		Shield-air Wash		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048607		Liner-oven Door		Appelez-nous	-
10	5303316953		Screw-handle, (2)		Appelez-nous	-
12	318053103		Seal-oven Door			Immediately	$ 150.03
13	318009210		Panel-oven Door,stainless		Appelez-nous	-
15	318091101		Bracket-glass, (3)		Appelez-nous	-
15	318091102		Bracket-glass,(3)		Appelez-nous	-
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318086020		Spacer-handle,(2)		Appelez-nous	-
23	5303320452		Hinge		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
32	318056701		Deflector, 4`` X 18.43``		Appelez-nous	-
32	318056700		Deflector, 4.5`` X 16.6``		Appelez-nous	-
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
*95294	08002868		Screw 10 X 24 X 1/2				$ 14.18
*95295	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*95296	5303212886		Tape		Appelez-nous	-
*95297	5303300414		Spacer, Cork & Rubber				$ 13.18
*95298	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*95299	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*95300	5303323277		Screw (8-18x13/32)				$ 8.66
*95301	5303324082		Spacer		Appelez-nous	-
*95302	5303325170		Nut-keps, 8-32		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
