SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body


04 - Door

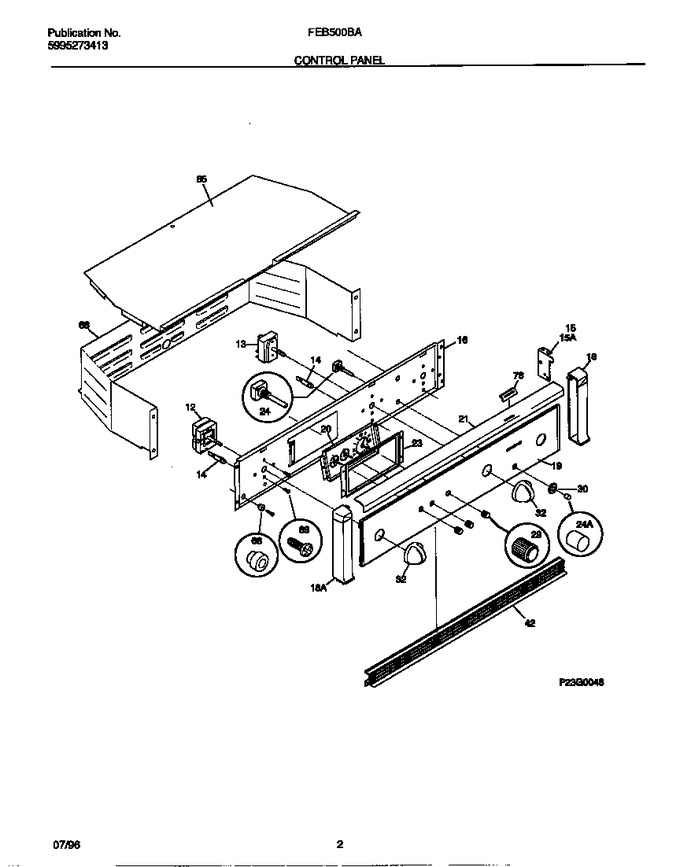

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303300413		Thermostat-oven		Appelez-nous	-
13	5303299471		Switch-selector		Appelez-nous	-
14	5303299473		Light-indicator		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
16	5303299464		Plate-instrument Mtg		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
18	5303311232		End Cap, Black, Lh		Appelez-nous	-
19	5303305034		Panel-control, Glass		Appelez-nous	-
20	5303298961		Clock/timer		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
21	5303300408		Trim-top		Appelez-nous	-
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
24	5303299474		Knob-light Switch, Black		Appelez-nous	-
24	318090000		Switch-oven Light		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
30	5303316767		Nut-decorative, Black		Appelez-nous	-
32	5303304950		Knob-control, Black, (2)		Appelez-nous	-
42	5303316651		Trim-vent, Black		Appelez-nous	-
65	5303302390		Cover-control Housing		Appelez-nous	-
66	5303304698		Spacer-rubber		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
78	5303302396		Cover, Oven Vent, Black		Appelez-nous	-
*83400	5303311318		End Connector		Appelez-nous	-
*83401	5303300414		Spacer, Cork & Rubber				$ 13.18

    View Diagram in Separate Window       Print Part List
