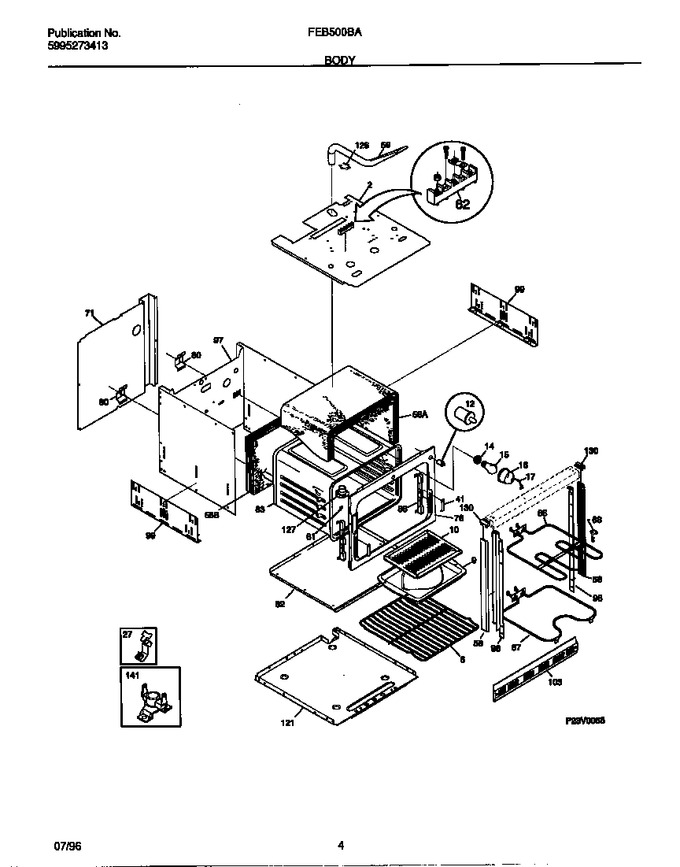

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298946		Shield-oven Top		Appelez-nous	-
6	318345216		Rack-oven   (Replaces: 5303296873)				$ 103.90
9	5303310521		Pan-broiler		Appelez-nous	-
10	5303310520		Insert-broiler Pan		Appelez-nous	-
12	08015948		Switch-door		Appelez-nous	-
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	3204483		Retainer-lens		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
41	3019063		Retainer-door		Appelez-nous	-
56	5303298951		Trim-bodyside, Black		Appelez-nous	-
58	5303304702		Insulation, Oven Wrapper		Appelez-nous	-
58	5303304703		Insulation, Oven Back		Appelez-nous	-
59	5303300422		Duct-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
66	5303016247		Element, Broil				$ 223.97
67	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
68	5303307563		Support-element		Appelez-nous	-
71	5303305037		Shield-wire		Appelez-nous	-
76	5303296866		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	3201632		Spacer-oven		Appelez-nous	-
82	5303305035		Shield, Oven Bottom		Appelez-nous	-
83	5303305022		Liner-oven Assy		Appelez-nous	-
86	3201631		Channel, Hinge				$ 58.22
97	318066603		Wrapper		Appelez-nous	-
98	5303298953		Trim-side, Inner, Lh		Appelez-nous	-
98	5303298952		Trim-side, Inner, Rh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
103	318028710		Trim-base, Black				$ 129.83
121	5303305036		Wrapper-base		Appelez-nous	-
126	3016303		Clip-insulator Retainer		Appelez-nous	-
127	5303206498		Adapter Assy		Appelez-nous	-
141	5303304704		Thermostat-safety		Appelez-nous	-
*83402	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*83403	08002868		Screw 10 X 24 X 1/2				$ 14.18
*83404	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*83405	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*83406	5303300421		Cover-capillary		Appelez-nous	-
*83407	5303316981		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
