SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body


04 - Door

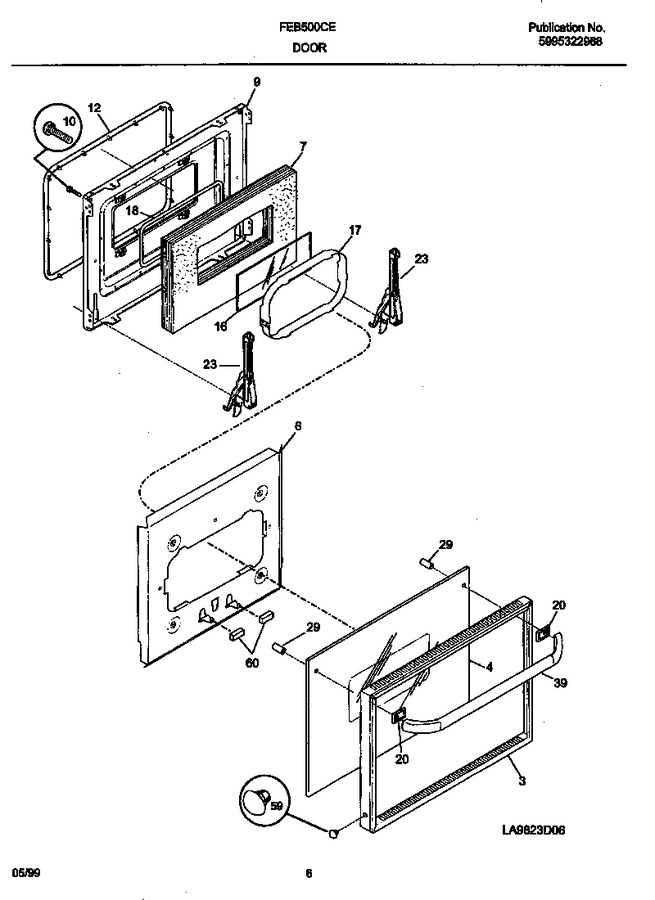

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026510		Trim-oven Door,black		Appelez-nous	-
4	3202420		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318156604		Line Oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	5303316768		Seal-oven Door, Lower Oven		Appelez-nous	-
16	5303323828		Glass-oven Door		Appelez-nous	-
17	318162601		Support-glass,lower Oven		Appelez-nous	-
18	5303299723		Seal-rope,lower Door		Appelez-nous	-
20	318014300		Spacer-handle, Black, (2)				$ 36.44
23	5303325091		Hinge-oven Door		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	318362822		Handle-door, Black, Oven   (Replaces: 316091103)				$ 104.05
59	3202113		Button, Plug		Appelez-nous	-
60	5303316982		Foam Seal,seal ,(3)		Appelez-nous	-
*24443	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06

    View Diagram in Separate Window       Print Part List
