01 - Blower Assembly (c301-c)

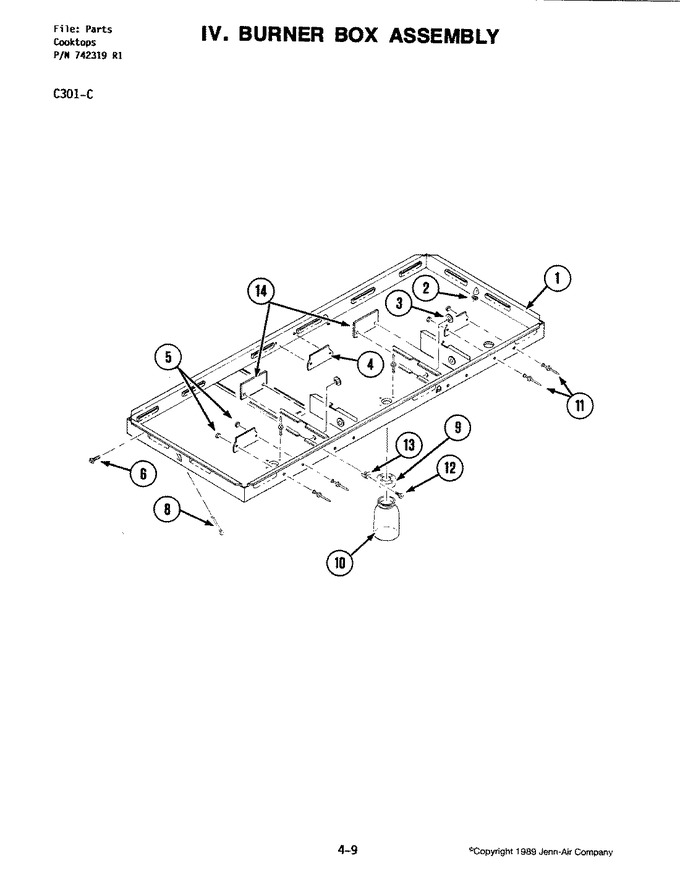

02 - Burner Box Assembly (c301-c)


03 - Escutcheon Assembly (c301-c)


04 - Top Assembly (c301-c)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-04440A		Box, Burner   (Replaces: 701993)	1-8			$ 412.54
2	M0282009		Nut,square   (Replaces: Y707124)	1-8			$ 12.06
3	Y707695		Bushing	1-8	Appelez-nous	-
4	DE81-07680A		Insulator   (Replaces: 701995)	1-8			$ 112.56
5	Y707664		Washer	1-8	Appelez-nous	-
6	WP90767		Screw   (Replaces: Y700502)	1-8		Immediately	$ 7.04
8	Y707121		Screw	1-8	Appelez-nous	-
9	Y707870		Lid, Jar	1-8	Appelez-nous	-
10	WPY707869		Jar, Drain   (Replaces: Y707869)	1-8			$ 61.43
12	701933		Screw	1-8	Appelez-nous	-
13	Y700672		Standoff----na	1-8	Appelez-nous	-
14	DE81-04036A		Wire (to Right Limiter)   (Replaces: 703560)	1-8			$ 352.83
14	707746		Insulator	1-8	Appelez-nous	-
14	703640		Baffle	1-8	Appelez-nous	-
14	700726		Wire (to Right Limiter)	1-8	Appelez-nous	-
14	700727		Wire (to Left Limiter)	1-8	Appelez-nous	-
14	DE81-04688A		Wire (to Left Limiter)   (Replaces: 703561)	1-8			$ 352.83
14	W11233072		Screw   (Replaces: Y708733)	1-8		Immediately	$ 12.62
