01 - Blower Assembly (c301-c)


02 - Burner Box Assembly (c301-c)


03 - Escutcheon Assembly (c301-c)

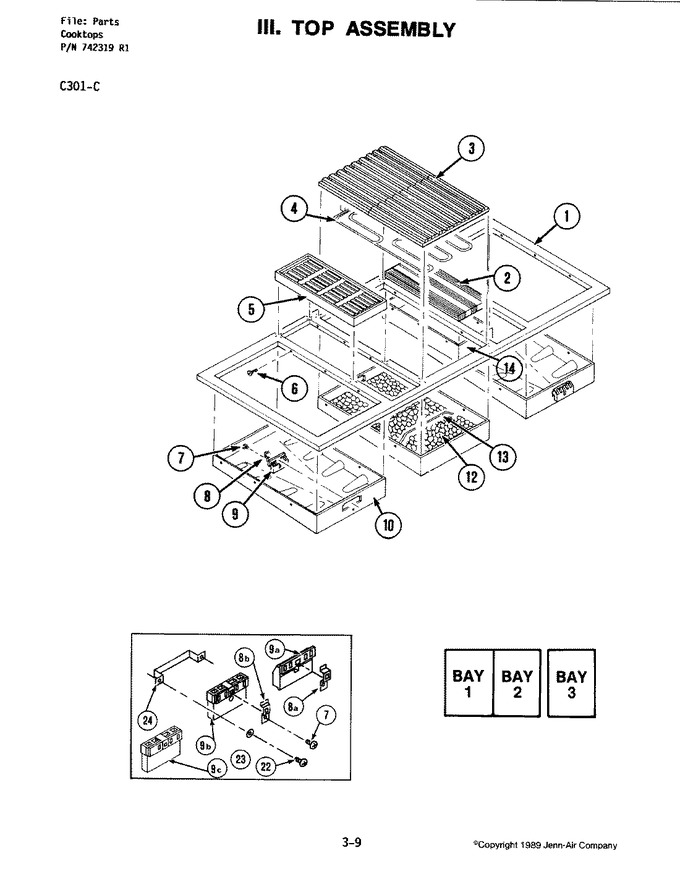

04 - Top Assembly (c301-c)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-06343A		Top   (Replaces: 701852)	1-3			$ 161.49
2	700729		Cover Assembly	1-3	Appelez-nous	-
3	707886		Grate	1-3	Appelez-nous	-
4	700714		Element, Complete 240v	1-3	Appelez-nous	-
5	DE81-04768A		Grill, Air   (Replaces: 700667)	1-3			$ 109.33
6	W11233072		Screw   (Replaces: Y707347)	1-3		Immediately	$ 12.62
7	WP489128		Screw   (Replaces: Y707341)	1-3			$ 9.79
8	74004835		Clip   (Replaces: 715121)	1-3			$ 11.37
8	74004835		Clip   (Replaces: Y702699)	1-3			$ 11.37
9	WPY702434		Receptacle   (Replaces: 702783)	1-3		Immediately	$ 96.61
9	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1-3		Immediately	$ 96.61
9	Y715120		Receptacle	1-3			$ 24.18
10	Y702042		Kit, Wire	1-3	Appelez-nous	-
10	Y712014		Wire, Yellow	1-3	Appelez-nous	-
10	701955		Pan, Grill (lt)	1-3	Appelez-nous	-
10	Y712035		Kit, Wire	1-3	Appelez-nous	-
10	WP5708M007-60		Wire, Yellow   (Replaces: Y700848)	1-3			$ 117.23
10	WP5708M008-60		Wire, Red   (Replaces: Y700849)	1-3			$ 87.19
10	WP5708M081-60		Wire, Black   (Replaces: Y700850)	1-3			$ 33.62
10	Y701490		Wire, Black	1-3	Appelez-nous	-
10	Y701491		Wire, Red	1-3	Appelez-nous	-
10	Y701492		Wire, Yellow	1-3	Appelez-nous	-
10	WP5708M005-60		Wire, Blue   (Replaces: Y701540)	1-3			$ 86.45
10	712022K		Kit, Wire   (Replaces: Y712034)	1-3			$ 194.34
10	Y702043		Kit, Wire	1-3	Appelez-nous	-
10	Y701899		Wire, Blue	1-3	Appelez-nous	-
10	DE81-07493A		Kit, Wire   (Replaces: 701937)	1-3			$ 198.39
10	701954		Pan, Grill (rev. W/brackets)	1-3	Appelez-nous	-
10	WP5708M007-60		Wire, Yellow   (Replaces: Y712020)	1-3			$ 117.23
10	Y712015		Wire, Red	1-3	Appelez-nous	-
10	712033		Kit, Wire	1-3	Appelez-nous	-
10	Y712030		Wire, Blue	1-3	Appelez-nous	-
10	WP5708M005-60		Contact/wire Assy. (blu-lt)   (Replaces: Y712029)	1-3			$ 86.45
10	WP5708M008-60		Wire, Red   (Replaces: Y712019)	1-3			$ 87.19
10	Y701953		Pan, Grill (w/brackets)	1-3	Appelez-nous	-
10	WP5708M081-60		Wire, Black   (Replaces: Y712018)	1-3			$ 33.62
10	Y712017		Wire, Black	1-3	Appelez-nous	-
12	708929		Plate, Rock	1-3	Appelez-nous	-
13	700819		Support, Rock Plate	1-3			$ 71.81
14	701991		Box, Utensil	1-3	Appelez-nous	-
22	WP59002061		Screw   (Replaces: Y707172)	1-3			$ 6.98
23	Y707664		Washer	1-3	Appelez-nous	-
24	Y702698		Bracket	1-3	Appelez-nous	-
