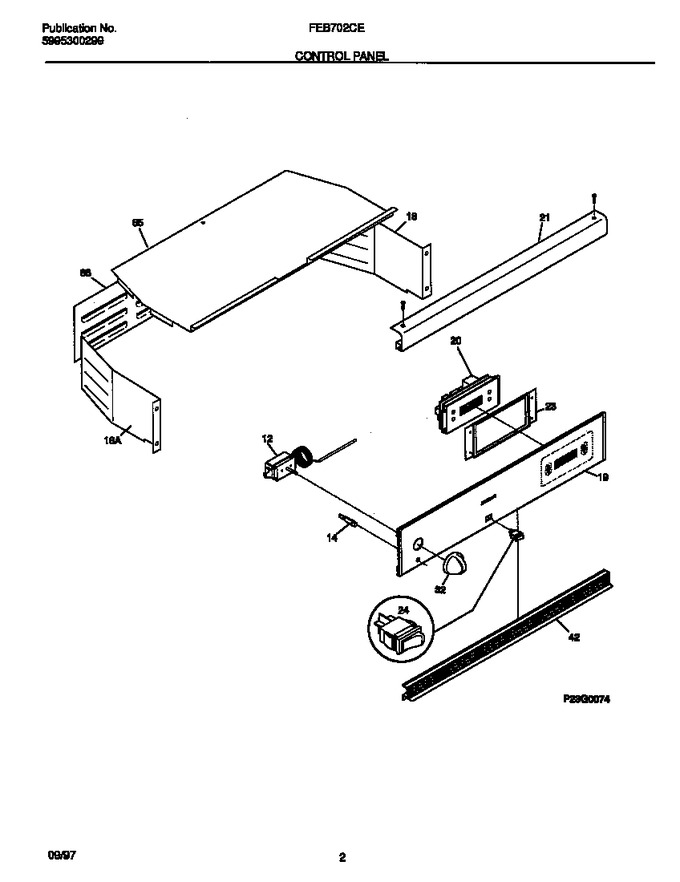

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058300		Thermostat-oven		Appelez-nous	-
14	5303320424		Light/lamp, Indicator, (3)		Appelez-nous	-
18	5303302378		End Cap, Housing Control, Lh		Appelez-nous	-
18	5303302377		End Cap, Housing Control, Rh		Appelez-nous	-
19	318129602		Panel-control, White		Appelez-nous	-
20	318011919		Clock/timer, Electronic, White		Appelez-nous	-
21	5303299529		Trim-canopy/shield, White		Appelez-nous	-
21	5303320683		Screw, Top Trim, 6-20 X 3/8, White, (2) (not Illustrated		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
24	5303304692		Plate, Backup, Light Switch (not Illustrated)		Appelez-nous	-
32	318017206		Knob-thermostat, White				$ 23.57
42	318026907		Trim-vent, White		Appelez-nous	-
65	3016309		Cover-control Housing		Appelez-nous	-
68	5303302376		Housing-control		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
*55560	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*55561	5303300265		Screw, 8-18 X 1/2				$ 15.17
*55562	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
23A	318015720		Bracket-clock Mtg		Appelez-nous	-
23B	5303320423		Rivet, (2) (not Illustrated)		Appelez-nous	-
23C	5303300414		Spacer, Cork & Rubber (not Illustrated)				$ 13.18

    View Diagram in Separate Window       Print Part List
