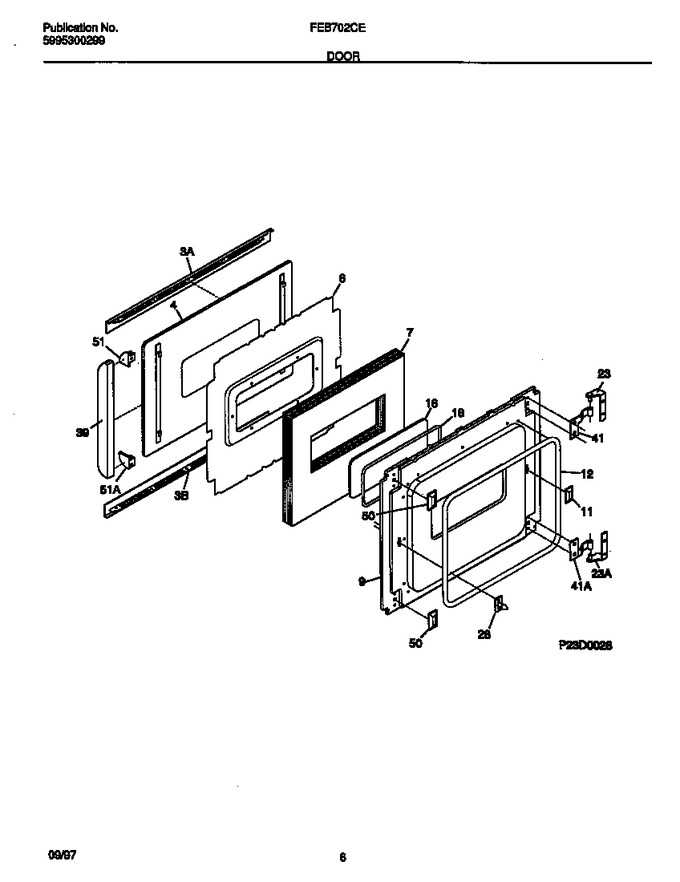

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303299730		Trim-oven Door, White, Upper		Appelez-nous	-
3	5303299731		Trim-oven Door, White, Lower		Appelez-nous	-
4	5303299728		Glass-oven Door, White, Outer, Bracket Incl.		Appelez-nous	-
6	5303316954		Shield-insulation		Appelez-nous	-
7	5303302388		Insulation, Oven Door		Appelez-nous	-
9	5303320491		Liner-oven Door		Appelez-nous	-
11	5303320489		Cover-door Latch		Appelez-nous	-
12	5303299722		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
23	5303299711		Hinge-oven Door, Lower, Assy		Appelez-nous	-
28	318090220		Strike-door				$ 57.04
39	5303299726		Handle-door, White, Oven		Appelez-nous	-
41	5303299744		Hinge-oven Door, Upper		Appelez-nous	-
41	5303299746		Hinge-oven Door, Lower		Appelez-nous	-
50	5303320493		Cover-hinge Cutout				$ 6.93
51	5303299738		Bracket, Handle Mtg, White, Upper				$ 98.86
51	5303299739		Bracket, Handle Mtg, White, Lower				$ 172.57
*55570	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*55571	5303300265		Screw, 8-18 X 1/2				$ 15.17
*55572	5303300414		Spacer, Cork & Rubber				$ 13.18
*55573	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*55574	5304414648		Screw, 10-24 X 1/4, Rail Mtg   (Replaces: 5303308458)				$ 14.18
*55575	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
18A	318090310		Latch-door   (Replaces: 318090300)			Immediately	$ 44.61
18B	5303299723		Seal-rope		Appelez-nous	-
23A	5303299712		Hinge-oven Door, Upper, Assy		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
