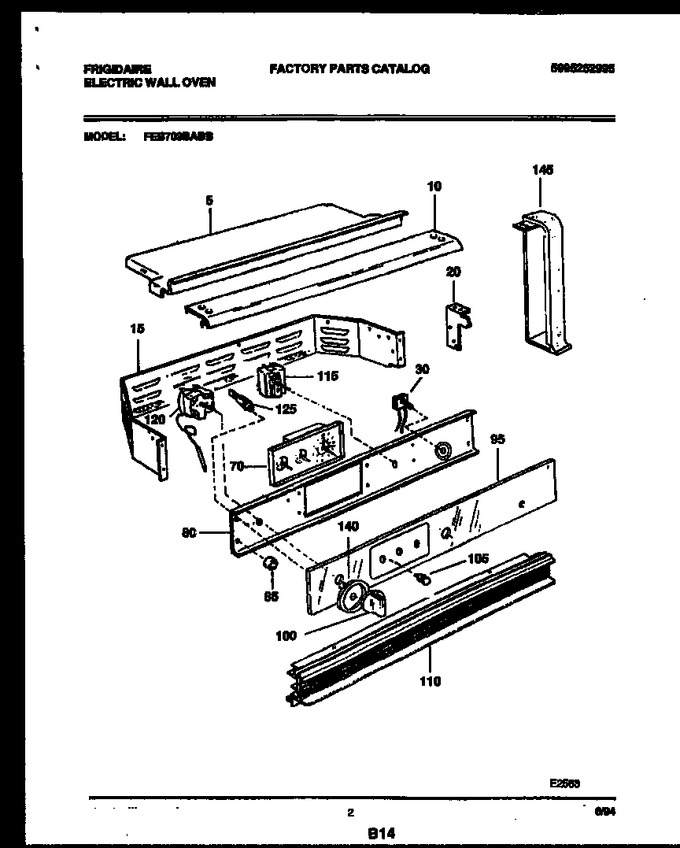

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303302386 | Cover-control Housing |
|
- | |||||
| 10 | 5303302371 | Trim, Top |
|
- | |||||
| 15 | 5303302285 | Back-housing Control |
|
- | |||||
| 20 | 5303302286 | Bracket-end-rh |
|
- | |||||
| 30 | 5303300410 | Light Switch |
|
- | |||||
| 70 | 5303298961 | Clock |
|
- | |||||
| 80 | 5303300100 | Plate-instrument Mtg |
|
- | |||||
| 85 | 5303304698 | Bumper-rubber |
|
- | |||||
| 95 | 5303301311 | Glass-control Panel |
|
- | |||||
| 100 | 5303297395 | Knob |
|
- | |||||
| 105 | 316029000 | Knob-timer |
|
- | |||||
| 110 | 5303302298 | Trim Center Vent |
|
- | |||||
| 115 | 5303299471 | Selector |
|
- | |||||
| 120 | 5303300413 | Oven Control |
|
- | |||||
| 125 | 5303299473 | Pilot Light |
|
- | |||||
| 140 | 5303299475 | Escutcheon |
|
- | |||||
| 145 | 5303301312 | End Backsplash-rh |
|
- | |||||
| *10356 | 3202088 | Bracket-clock |
|
- | |||||
| 145A | 5303301313 | End Backsplash-lh |
|
- | |||||
| 20A | 5303302287 | Bracket-end-lh |
|
- | |||||
| 30A | 5303300411 | Bezel Light Switch (non-illustrated) |
|
- |
