SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Body Parts

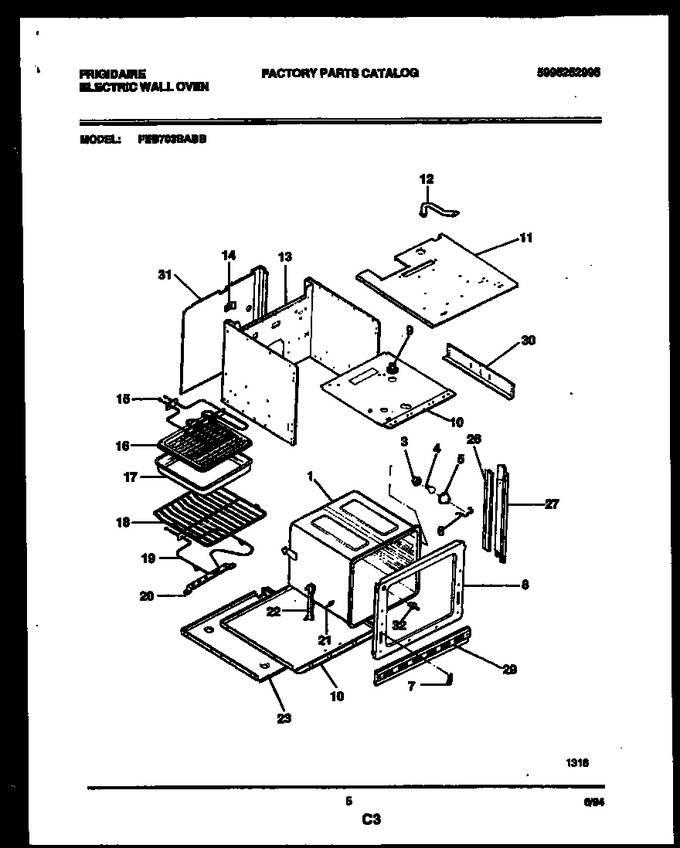

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303299862		Liner, Oven		Appelez-nous	-
3	08011171		Receptacle		Appelez-nous	-
4	40A15		Bulb   (Replaces: 5303299720)			Immediately	$ 1.98
5	5304524341		Lens   (Replaces: 3201911)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	5303299859		Frame, Front		Appelez-nous	-
9	5303206498		Vent-tube Assembly		Appelez-nous	-
10	5303304699		Shield-top		Appelez-nous	-
11	5303300093		Wrapper-top		Appelez-nous	-
12	5303300422		Duct-oven Vent		Appelez-nous	-
13	5303300980		Wrapper		Appelez-nous	-
14	5303301261		Spring-oven (2)		Appelez-nous	-
15	5303016247		Element, Broil				$ 223.97
16	3201920		Broiler Grill		Appelez-nous	-
17	3201919		Broiler Pan		Appelez-nous	-
18	318345216		Rack (2)   (Replaces: 5303296873)				$ 103.90
19	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
20	3016248		Support, Broil Element		Appelez-nous	-
21	3201632		Spacer, Oven (2)		Appelez-nous	-
22	3201631		Channel, Hinge				$ 58.22
23	5303304700		Wrapper-base		Appelez-nous	-
26	5303298952		Trim-side, Inner, Rh		Appelez-nous	-
27	5303298951		Trim-side-outer (2)		Appelez-nous	-
29	5303300095		Trim-base		Appelez-nous	-
30	5303299686		Support,adjustable		Appelez-nous	-
31	5303304701		Cover-wire		Appelez-nous	-
32	5301314211		Switch-oven Light				$ 95.29
*10356	5303300421		Cover-capillary Tube		Appelez-nous	-
*10356	5303304703		Insulation		Appelez-nous	-
*10356	5303304702		Insulation		Appelez-nous	-
*10356	5303304704		Safety Thermostat		Appelez-nous	-
*10356	5304409888		Main-terminal Block   (Replaces: 5306563359)			Immediately	$ 26.69
*10356	5303284616		Thermostat Bulb Clip				$ 9.86
26A	5303298953		Trim-side, Inner, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
