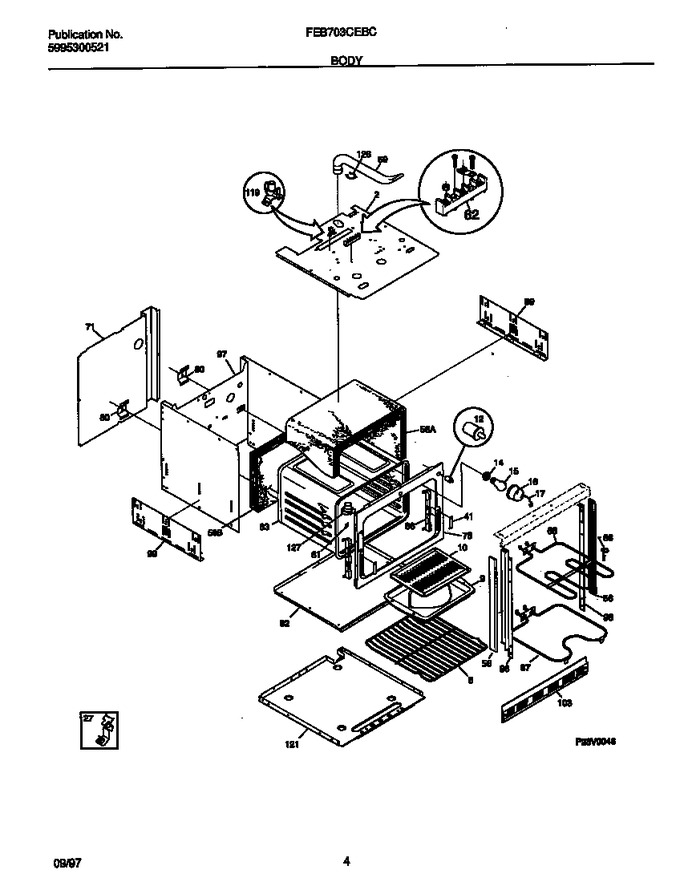

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303300093 | Shield-oven Top |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 5301314211 | Switch-light |
|
$ 95.29 | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 27 | 318144700 | Clip-thermo Bulb |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 56 | 5303298951 | Trim-bodyside, Black |
|
- | |||||
| 56 | 5303320422 | Screw, 6-20 X 5/16, Side Trim, (4) (not Illustrated) |
|
$ 12.71 | |||||
| 58 | 5303304702 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 5303304703 | Insulation, Oven Back |
|
- | |||||
| 59 | 318072507 | Tube,oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 67 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 71 | 5303304701 | Shield-wire |
|
- | |||||
| 76 | 318124201 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 3201632 | Spacer-oven |
|
- | |||||
| 82 | 5303304699 | Shield-insulation |
|
- | |||||
| 83 | 318089509 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 97 | 5303300980 | Wrapper, Back & Sides |
|
- | |||||
| 98 | 5303298953 | Trim-side, Inner, Lh |
|
- | |||||
| 98 | 5303298952 | Trim-side, Inner, Rh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 103 | 318028700 | Trim-base, Black |
|
$ 156.12 | |||||
| 119 | 318003605 | Switch-thermal (Replaces: 3202388) |
|
$ 178.61 | |||||
| 121 | 318145002 | Wrapper,base |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| *62483 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *62484 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *62485 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| *62486 | 318042500 | Retainer Plate |
|
- | |||||
| *62487 | 5303300421 | Cover-capillary |
|
- | |||||
| *62488 | 5303319468 | Box & Wires Assy |
|
- |
