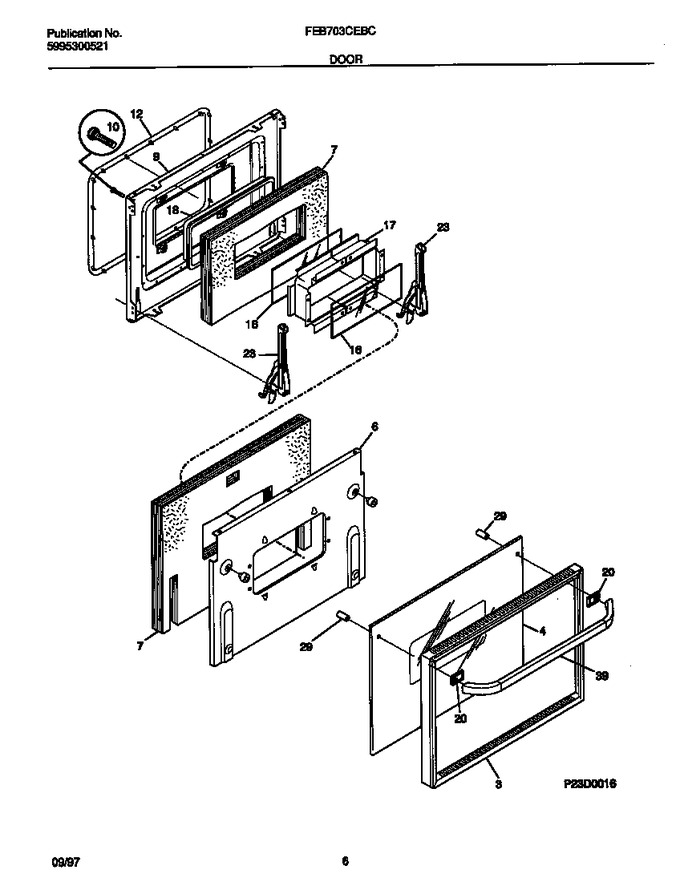

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5304401679		Glass-oven Door,black ,outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048402		Liner-oven Door, Lower Oven		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	5303316768		Seal-oven Door		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	318162601		Retainer-glass		Appelez-nous	-
18	3016338		Seal-rope				$ 43.20
20	318014300		Spacer-handle, Black, (2)				$ 36.44
23	318074102		Hinge-oven Door		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	316091106		Handle-door,black ,oven		Appelez-nous	-
*62489	3202113		Button, Plug		Appelez-nous	-
*62490	5303300414		Spacer, Cork & Rubber				$ 13.18
*62491	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*62492	5304414648		Screw, 10-24 X 1/4, Rail Mtg   (Replaces: 5303308458)				$ 14.18
*62493	5303316982		Tape, Seal, (3)		Appelez-nous	-
