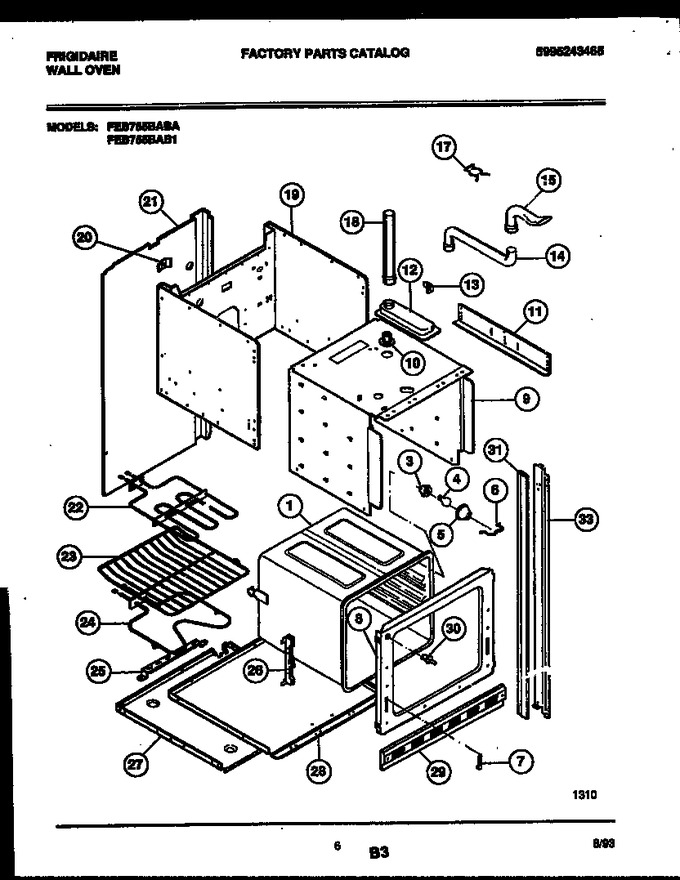

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300952		Liner-oven		Appelez-nous	-
3	08011171		Receptacle		Appelez-nous	-
4	3201908		Bulb		Appelez-nous	-
5	5304524341		Oven Light Cover   (Replaces: 3201911)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	5303210005		Panel - Air Wash		Appelez-nous	-
7	3019063		Retainer-door		Appelez-nous	-
8	5303299859		Frame, Front		Appelez-nous	-
9	5303299270		Shield, Insulation		Appelez-nous	-
10	3205683		Adapter Assembly		Appelez-nous	-
11	5303299686		Support,adjustable		Appelez-nous	-
12	3016324		Duct-oven Vent		Appelez-nous	-
13	3016326		Bracket-oven Vent		Appelez-nous	-
14	3016327		Duct-oven Vent Pipe		Appelez-nous	-
15	5303300422		Duct-oven Vent		Appelez-nous	-
17	3016303		Clip-insul Retainer		Appelez-nous	-
18	3016325		Duct-oven Vent Cent		Appelez-nous	-
19	3016275		Wrapper		Appelez-nous	-
20	3016281		Spring, Oven		Appelez-nous	-
21	3016335		Cover-rear		Appelez-nous	-
22	5303016247		Element, Broil				$ 223.97
23	318345216		Oven Shelf   (Replaces: 5303296873)				$ 103.90
24	5303201724		Element-bake		Appelez-nous	-
25	3016248		Support, Element		Appelez-nous	-
26	3201631		Channel, Hinge				$ 58.22
27	3016277		Wrapper, Base		Appelez-nous	-
28	5303300094		Shield-insulation		Appelez-nous	-
29	5303300095		Trim-base		Appelez-nous	-
30	3016298		Switch, Oven Light		Appelez-nous	-
31	5303300954		Trim-inner-rh		Appelez-nous	-
33	5303300956		Trim-side Outer (2)		Appelez-nous	-
*82913	5303271040		Insulation-wrap		Appelez-nous	-
*82913	5303300957		Cover-oven Vent		Appelez-nous	-
*82913	5303284614		Thermostat Bulb Clip		Appelez-nous	-
31A	5303300955		Trim-inner-lh		Appelez-nous	-
