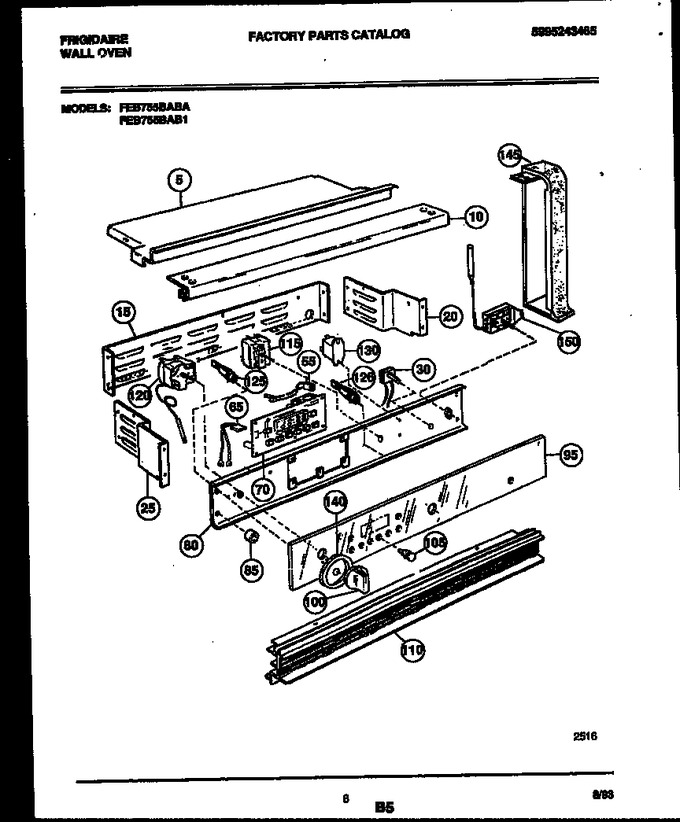

06 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303300098 | Cover-control Housing |
|
- | |||||
| 10 | 5303300968 | Trim-top Vent |
|
- | |||||
| 15 | 5303300969 | Back-housing Control |
|
- | |||||
| 20 | 5303298947 | End Hsg Control-rh |
|
- | |||||
| 25 | 5303298948 | End Hsg Control-lh |
|
- | |||||
| 30 | 5303300410 | Light Switch |
|
- | |||||
| 55 | 5303300970 | Crossover Lead |
|
- | |||||
| 65 | 5303299536 | Crossover Lead |
|
- | |||||
| 70 | 5303300971 | Timer |
|
- | |||||
| 80 | 5303300972 | Plate-instrument Mtg |
|
- | |||||
| 85 | 3202093 | Bumper |
|
- | |||||
| 95 | 5303300973 | Glass-control Panel |
|
- | |||||
| 100 | 5303297395 | Knob (3) |
|
- | |||||
| 105 | 5303299543 | Knob (8) |
|
- | |||||
| 110 | 5303300102 | Vent Trim |
|
- | |||||
| 115 | 5303300974 | Selector |
|
- | |||||
| 120 | 5303300975 | Oven Control |
|
$ 287.35 | |||||
| 125 | 5303299473 | Pilot Light |
|
- | |||||
| 126 | 5303300976 | Pilot Light |
|
- | |||||
| 130 | 5303300977 | Relay |
|
- | |||||
| 140 | 5303299475 | Escutcheon (3) |
|
- | |||||
| 145 | 5303299476 | End-backsplash-rh |
|
- | |||||
| 150 | 5303300978 | Oven Control-lower Oven |
|
- | |||||
| *82915 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 145A | 5303299477 | End-backsplash-lh |
|
- | |||||
| 30A | 5303300411 | Bezel-switch (non-illustrated) |
|
- |
