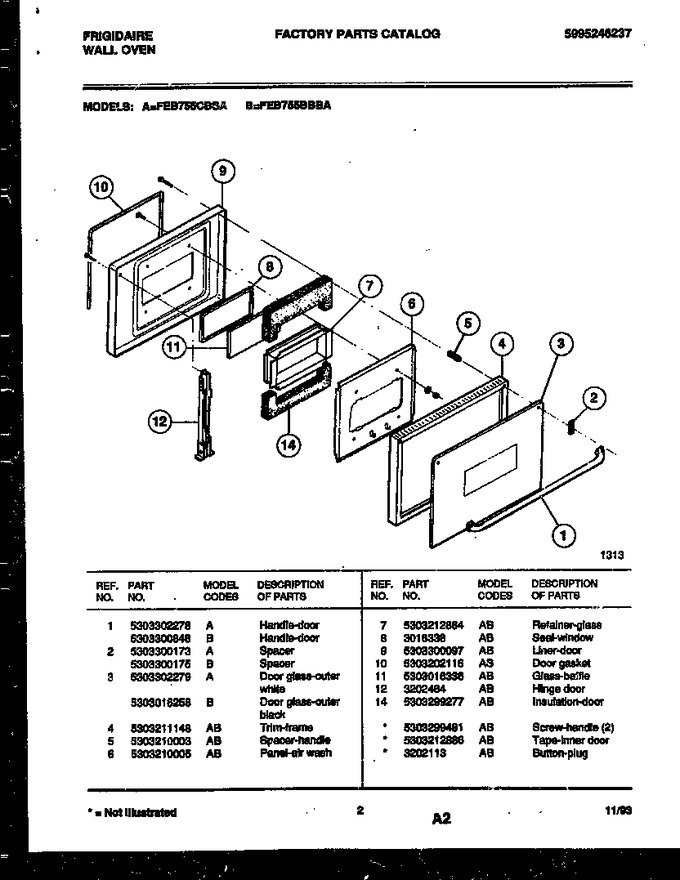

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300848 | Handle-door |
|
- | |||||
| 2 | 5303300175 | Spacer |
|
- | |||||
| 3 | 5303016258 | Door Glass-outer Black |
|
- | |||||
| 4 | 5303211148 | Trim - Frame |
|
- | |||||
| 5 | 5303210003 | Spacer, Handle |
|
- | |||||
| 6 | 5303210005 | Panel - Air Wash |
|
- | |||||
| 7 | 5303212864 | Retainer-glass |
|
- | |||||
| 8 | 3016338 | Seal-window |
|
$ 43.20 | |||||
| 9 | 5303300097 | Liner-door |
|
- | |||||
| 10 | 5303202116 | Door Gasket |
|
$ 136.08 | |||||
| 11 | 5303016336 | Glass-baffle |
|
- | |||||
| 12 | 3202464 | Hinge Door |
|
- | |||||
| 14 | 5303299277 | Insulation, Door |
|
- | |||||
| *88972 | 5303212886 | Tape-inner Door |
|
- | |||||
| *88972 | 3202113 | Button, Plug |
|
- | |||||
| *88972 | 5303299481 | Screw-handle (2) |
|
- |
