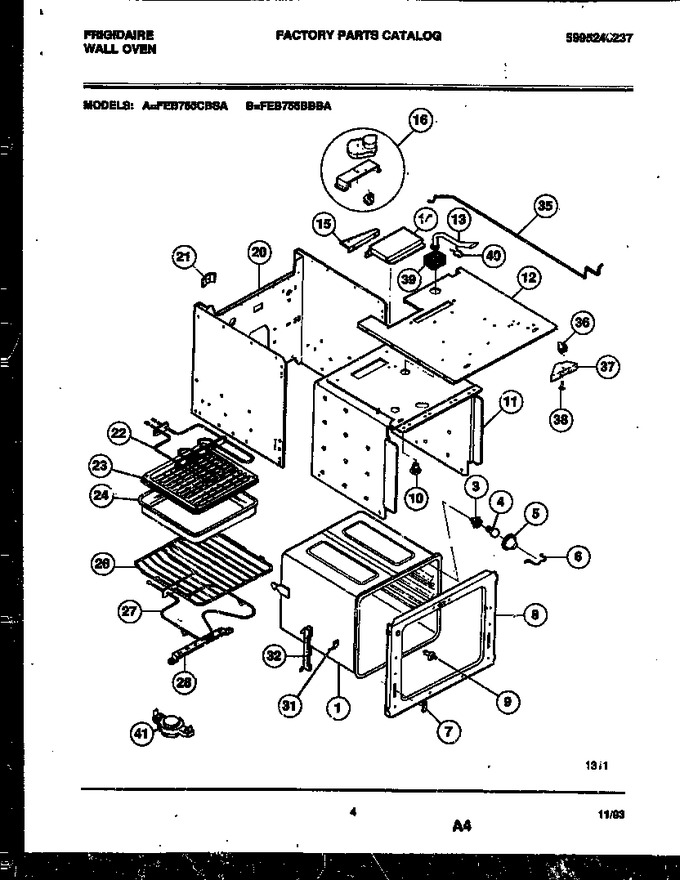

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300420		Liner-oven		Appelez-nous	-
3	08011171		Receptacle		Appelez-nous	-
4	3201908		Bulb		Appelez-nous	-
5	5304524341		Oven Light Cover   (Replaces: 3201911)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer-door		Appelez-nous	-
8	5303299251		Frame, Front		Appelez-nous	-
9	08015948		Switch - Oven Light		Appelez-nous	-
10	5303206498		Vent-tube Assembly		Appelez-nous	-
11	5303299270		Shield, Insulation		Appelez-nous	-
12	3016249		Wrapper - Top		Appelez-nous	-
13	5303300951		Duct-vent Tube		Appelez-nous	-
14	3016296		Cover-motor		Appelez-nous	-
15	3016276		Bracket-motor Mtg		Appelez-nous	-
16	5308015743		Motor Latch Assy				$ 211.92
20	5303300979		Wrapper		Appelez-nous	-
21	5303301261		Spring,oven		Appelez-nous	-
22	5303016247		Element, Broil				$ 223.97
23	3201920		Broiler Grill		Appelez-nous	-
24	3201919		Broiler Pan		Appelez-nous	-
26	318345216		Oven Shelf   (Replaces: 5303296873)				$ 103.90
26	5303299271		Oven Shelf		Appelez-nous	-
27	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
28	3016248		Support, Element		Appelez-nous	-
31	3201632		Oven Support		Appelez-nous	-
32	3201631		Channel, Hinge				$ 58.22
35	3016241		Rod, Latch Switch		Appelez-nous	-
36	3051648		Latch		Appelez-nous	-
37	3019069		Housing-latch		Appelez-nous	-
38	5308012004		Axle-latch				$ 8.29
40	3016303		Clip-insul Retainer		Appelez-nous	-
41	5303302280		Safety Thermostat				$ 203.24
*88979	3016323		Insulation, Wrapper		Appelez-nous	-
*88980	3019048		Insulation-back		Appelez-nous	-
*88980	3016319		Insulation-back		Appelez-nous	-
*88980	5303284614		Thermostat Bulb Clip		Appelez-nous	-
