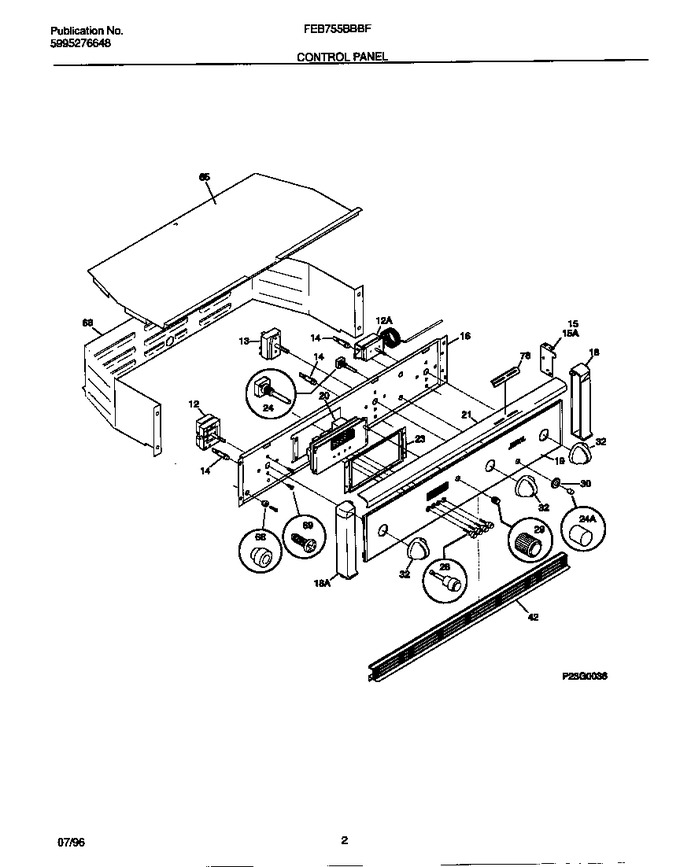

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303300978		Thermostat-oven, Lower		Appelez-nous	-
12	5303300975		Thermostat-oven, Upper				$ 287.35
13	5303300974		Switch-selector		Appelez-nous	-
14	5303302299		Light-indicator, 250 V		Appelez-nous	-
14	5303299473		Light-indicator		Appelez-nous	-
14	5303300976		Light-indicator, 250 V		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
16	5303302291		Plate-instrument Mtg		Appelez-nous	-
18	5303311232		End Cap, Black, Lh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
19	5303302293		Panel-control, Glass		Appelez-nous	-
20	5303302289		Clock/timer, Electronic		Appelez-nous	-
21	5303300968		Trim-canopy/shield, Black		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	5303299474		Knob-light Switch, Black		Appelez-nous	-
24	318090000		Switch-oven Light		Appelez-nous	-
24	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
28	5303302295		Knob-clock, Black, (4)		Appelez-nous	-
29	5303016292		Knob-clock/timer, Black		Appelez-nous	-
30	5303316767		Nut-decorative, Black		Appelez-nous	-
32	5303304950		Knob-control, Black, (3)		Appelez-nous	-
42	5303316983		Trim-vent, Black				$ 150.16
65	5303302386		Cover-control Housing		Appelez-nous	-
66	5303304698		Spacer-rubber		Appelez-nous	-
68	5303302285		Panel-back, Housing Control		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
78	5303300957		Cover, Oven Vent, Black		Appelez-nous	-
*13360	5303300414		Spacer, Cork & Rubber				$ 13.18
*13361	5303311318		End Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
