SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Lower Body

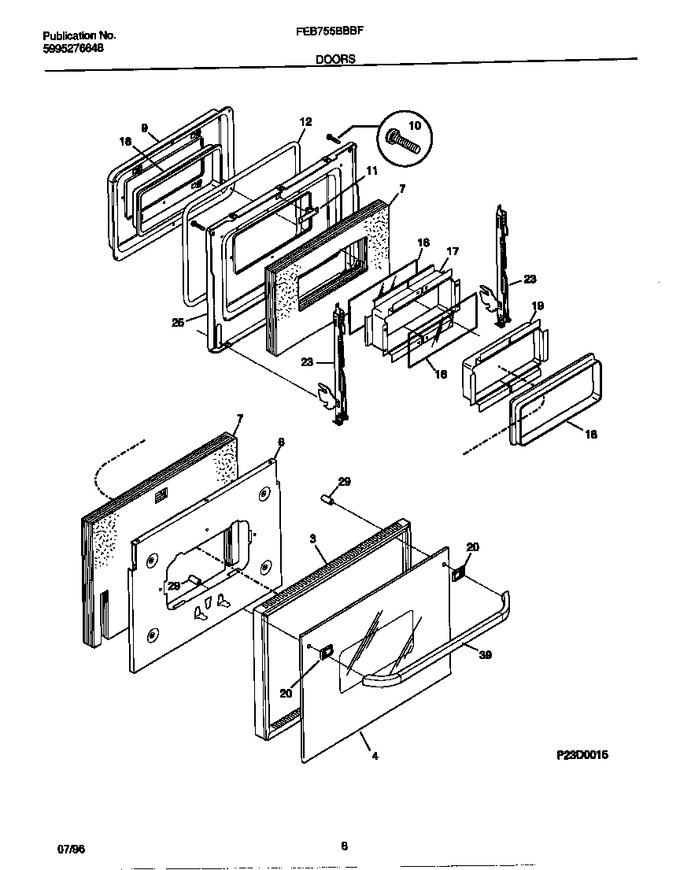

04 - Upper Body


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5303016258		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	5303300097		Liner-oven Door, Lower		Appelez-nous	-
9	5303300949		Liner-oven Door, Upper		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
11	DK1323556		Strike Plate, Upper Oven		Appelez-nous	-
12	5303299275		Seal-oven Door, Upper		Appelez-nous	-
12	5303316768		Seal-oven Door, Lower		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	5303210008		Spacer-glass, Upper Oven		Appelez-nous	-
17	5303212864		Spacer-glass, Lower Oven		Appelez-nous	-
18	3016338		Seal-rope, Lower Oven				$ 43.20
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	5303210006		Collar-glass Mtg, Upper Oven		Appelez-nous	-
20	5303300175		Spacer-handle,black		Appelez-nous	-
23	5303018381		Hinge-oven Door, Upper				$ 145.85
23	3202464		Hinge-oven Door, Lower Oven		Appelez-nous	-
25	5303300950		Liner-door Baffle, Upper Oven		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	5303300948		Handle-door, Black, Oven		Appelez-nous	-
*13369	3202113		Button, Plug		Appelez-nous	-
*13370	5303300414		Spacer, Cork & Rubber				$ 13.18
*13371	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*13372	5303308456		Screw, 8-18 X 17/32, Door Frame				$ 10.06
*13373	5303316982		Tape, Seal, (2)		Appelez-nous	-
