View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel

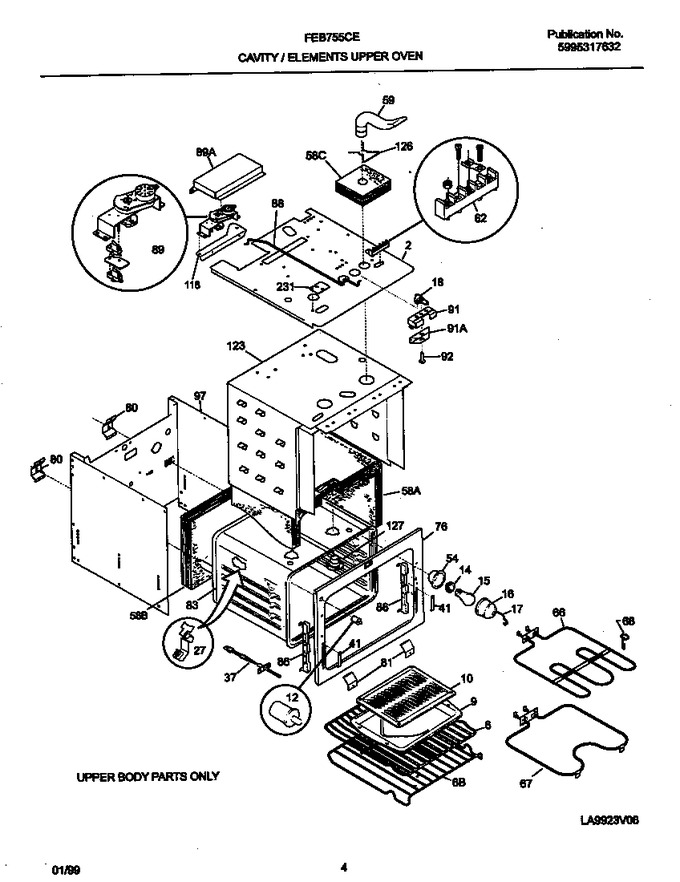

03 - Cavity/elements Upper Oven
04 - Cavity/elements Lower Oven
05 - Upper/lower Doors
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304402380 | Cover-top |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 6 | 5303299271 | Shelf-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket - Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer-lens |
|
- | |||||
| 18 | 3051648 | Latch-door |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 37 | 316217002 | Prove-oven Thermo (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 58 | 5303317714 | Insulation, Oven Vent |
|
- | |||||
| 58 | 5304409957 | Insulation-wrapper |
|
- | |||||
| 58 | 53019048 | Insulation-oven Back |
|
- | |||||
| 59 | 5303300951 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 67 | 5303323865 | Element-bake |
|
- | |||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 76 | 318124200 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 83 | 318089518 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 88 | 3016241 | Rod-latch |
|
- | |||||
| 89 | 3016296 | Cover-motor |
|
- | |||||
| 89 | 318095800 | Motor-latch |
|
- | |||||
| 91 | 3019069 | Housing-latch |
|
- | |||||
| 91 | 3051647 | Housing, Latch |
|
- | |||||
| 92 | 5308012004 | Stud - Axle |
|
$ 8.29 | |||||
| 97 | 318066500 | Wrapper, Back & Sides |
|
- | |||||
| 118 | 5303308461 | Bracket-latch |
|
- | |||||
| 123 | 318071430 | Shield-insulation Top & Sides |
|
- | |||||
| 126 | 3016303 | Clip-innsulator |
|
- | |||||
| 127 | 318317100 | Adaptor Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 231 | 5303300421 | Cover-capillary |
|
- | |||||
| *02882 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *02883 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *02884 | 5303308456 | Screw,8-18 X 0.531 |
|
$ 10.06 | |||||
| *02885 | 5303308449 | Fastener |
|
- | |||||
| *02886 | 5303323955 | Clip-retainer |
|
- | |||||
| *02887 | 3018802 | Clip-cable |
|
- | |||||
| *02888 | 3051070 | Screw,10-24 X 7/16 |
|
- | |||||
| *02889 | 5303323139 | Screw,10-24 X 29/32 |
|
$ 13.46 | |||||
| *02890 | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| *02891 | 5303323136 | Screw-ground |
|
- |
