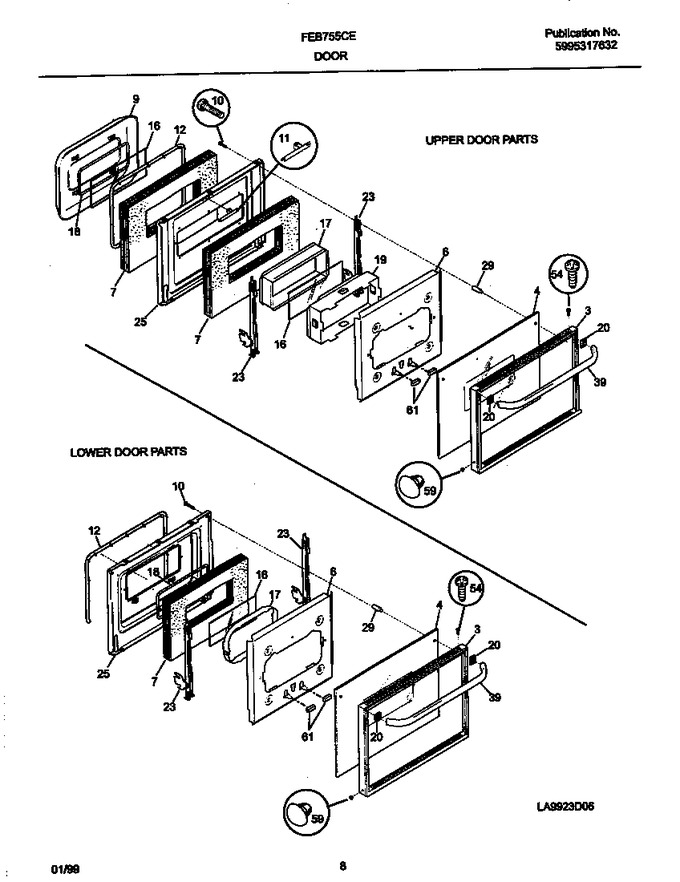

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5304401679		Glass-oven Door,black		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318038601		Liner-door Baffle		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
11	5303294969		Strike Plate		Appelez-nous	-
19	318139201		Collar Glass Mtg,door Upper		Appelez-nous	-
20	318014300		Spacer-handle,black				$ 36.44
29	5303210003		Spacer-handle Mtg		Appelez-nous	-
39	316091106		Handle-door,black		Appelez-nous	-
54	5303308456		Screw-8-18 X 17/32				$ 10.06
59	3202113		Button, Plug		Appelez-nous	-
61	5303300414		Spacer, Cork & Rubber				$ 13.18
*02902	08002868		Screw 10 X 24 X 1/2				$ 14.18
*02903	3051070		Screw,10-24 X 7/16		Appelez-nous	-
*02904	5303325981		Screw,10-16 X 1 1/2		Appelez-nous	-
12A	3206270		Seal-oven Door Upper		Appelez-nous	-
12B	5303316768		Seal-oven Door, Lower		Appelez-nous	-
16A	5303324250		Glass-oven Door Upper				$ 184.54
16B	5303323828		Glass-oven Door Lower		Appelez-nous	-
17A	318139100		Support-glass Door,upper		Appelez-nous	-
17B	318162601		Support-glass Door,lower		Appelez-nous	-
18A	3016263		Seal-rope Door,upper				$ 66.15
18B	5303299723		Seal-rope Door,lower		Appelez-nous	-
23A	318074101		Hinge-oven Door,upper		Appelez-nous	-
23B	318074103		Hinge-oven Door,lower		Appelez-nous	-
25A	318048301		Liner-oven Door,upper		Appelez-nous	-
25B	318048402		Liner-oven Door, Lower		Appelez-nous	-
