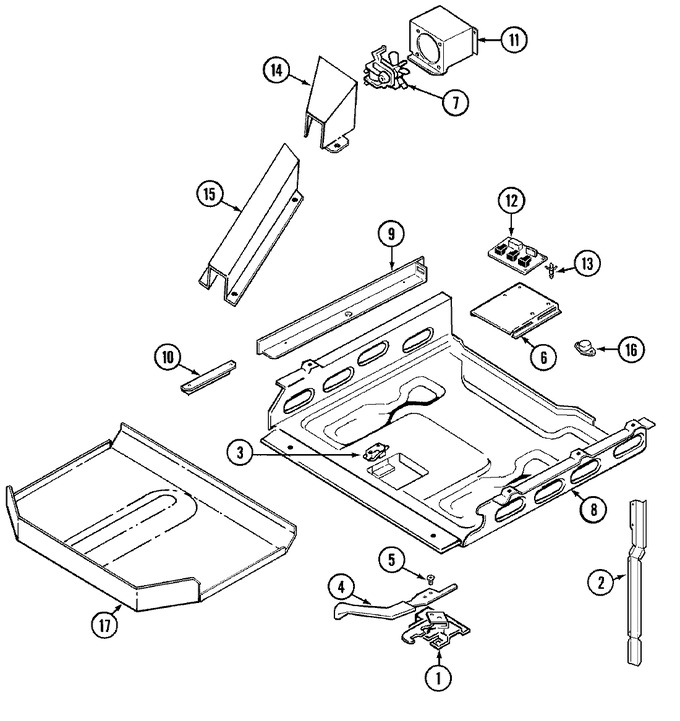

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003139 | Retainer, Latch Insulation | 10 |
|
- | ||||
| 1 | 74003123 | Latch, Oven Door | 10 |
|
- | ||||
| 1 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 1 | 74001084 | Insulation, Door Latch | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 3818F059-51 | Channel, Air | 10 |
|
- | ||||
| 3 | 7101P031-60 | Screw | 10 |
|
- | ||||
| 3 | 74001708 | Switch, Door Latch | 10 |
|
- | ||||
| 4 | 74003005 | Lever, Latch (blk) | 10 |
|
- | ||||
| 5 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 6 | 4005F466-51 | Cover, Door Lock | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 7427P012-60 | Fan | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74002685 | Box, Burner | 10 |
|
- | ||||
| 9 | 3604F213-51 | Shield, Heat (lt) | 10 |
|
- | ||||
| 9 | 3604F214-51 | Shield, Heat (rt) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 3801F327-51 | Bracket | 10 |
|
- | ||||
| 10 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 4001F098-51 | Housing, Fan | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74001633 | Board, Relay | 10 |
|
- | ||||
| 13 | 8004P020-60 | Support, Relay Board | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 3818F056-51 | Duct, Air | 10 |
|
- | ||||
| 15 | 3818F054-51 | Channel, Bottom | 10 |
|
- | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 3818F053-51 | Channel, Air Top | 10 |
|
- | ||||
| 16 | 7403P307-60 | Thermostat, Snap Acting | 10 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | 74001549 | Shield, Wire | 10 |
|
- |
