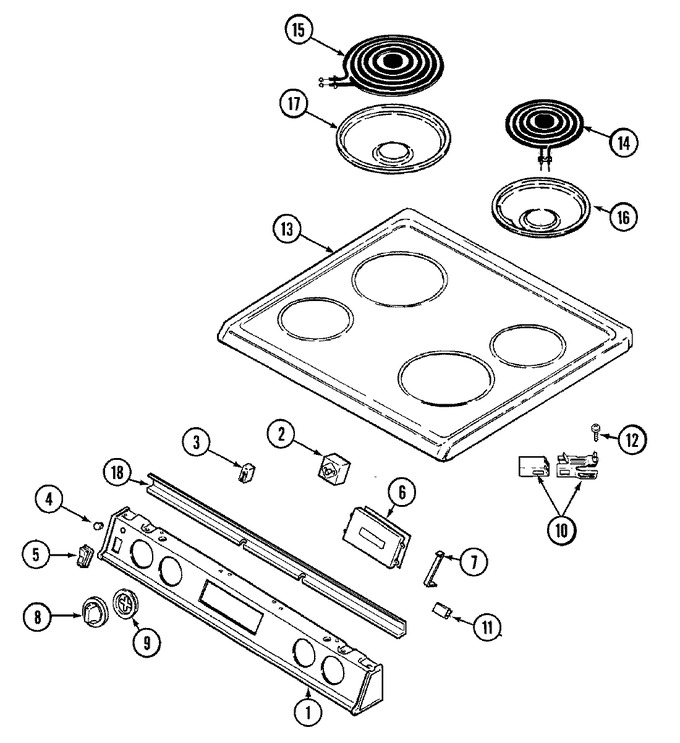

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74003008 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 5 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 6 | 74002271 | Clock (blk) | 10 |
|
- | ||||
| 7 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 3.76 | ||||
| 7 | WPY706189 | Screw (Replaces: 7101P346-60) | 10 |
|
Immediately | $ 6.47 | |||
| 7 | 74003191 | Bracket, Clock | 10 |
|
- | ||||
| 8 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 9 | 7740P020-60 | Bezel, Knob (blk) | 10 |
|
- | ||||
| 10 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 11 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 12 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 13 | 74001247 | Top Assy. (stnls) | 10 |
|
- | ||||
| 13 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 14 | WPW10259868 | Kit, Element (6`` Blk. Med.) (Replaces: 12001231) | 10 |
|
Immediately | $ 112.28 | |||
| 14 | WP12001559 | Element, Surface (6``) (Replaces: 74004090) | 11 |
|
$ 141.24 | ||||
| 15 | WP12001560 | Element, Surface (8``) (Replaces: 74004089) | 11 |
|
$ 172.17 | ||||
| 15 | WP12001560 | Kit, Element (8`` Blk. Med.) (Replaces: 12001230) | 10 |
|
$ 172.17 | ||||
| 16 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 10 |
|
Immediately | $ 12.05 | |||
| 17 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 10 |
|
Immediately | $ 15.56 | |||
| 18 | 74002647 | Trim, Shield Manifold Panel | 10 |
|
- | ||||
| NI | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| NI | 5170P228-60 | Harness, Sensor & Lock | 10 |
|
- | ||||
| NI | 74001583 | Harness, Clock/relay | 10 |
|
- | ||||
| NI | 74002579 | Manual, Insert Clock (frch) | 10 |
|
- | ||||
| NI | 74003056 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 74002467 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| NI | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
