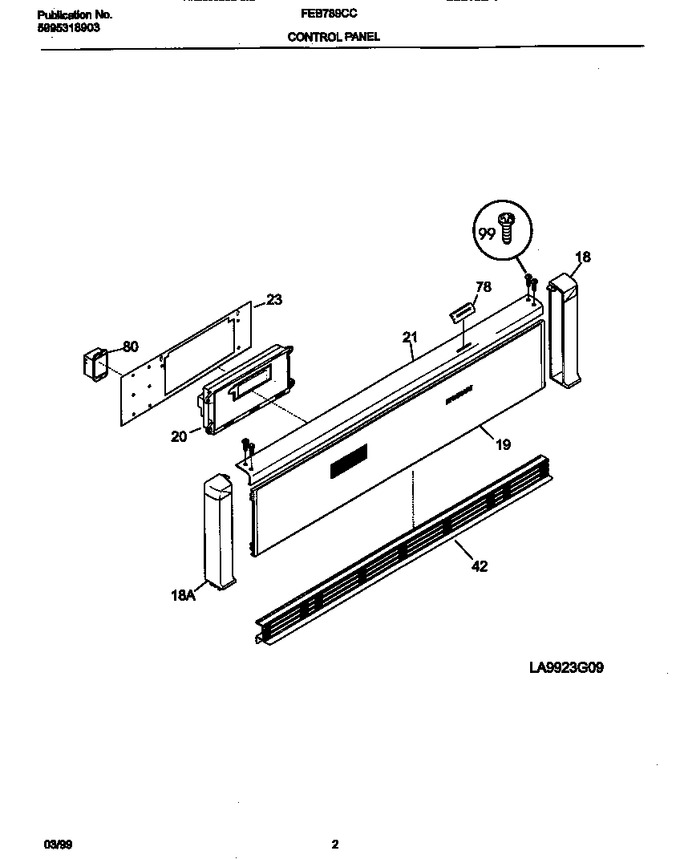

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311209		End Cap, White, Lh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318030010		Panel-control, White		Appelez-nous	-
20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
21	5303311212		Trim-canopy/shield, White				$ 238.98
23	318111602		Bracket-timer		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
78	5303302394		Cover, Oven Vent, White		Appelez-nous	-
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
*10720	3201861		Screw, 6 X 3/8				$ 0.76
*10721	08002868		Screw 10 X 24 X 1/2				$ 14.18
*10722	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*10723	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*10724	5303300414		Spacer, Cork & Rubber				$ 13.18
*10725	5303302745		Screw <10-16x-1-1/8>				$ 8.35
*10726	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*10727	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*10728	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
