SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

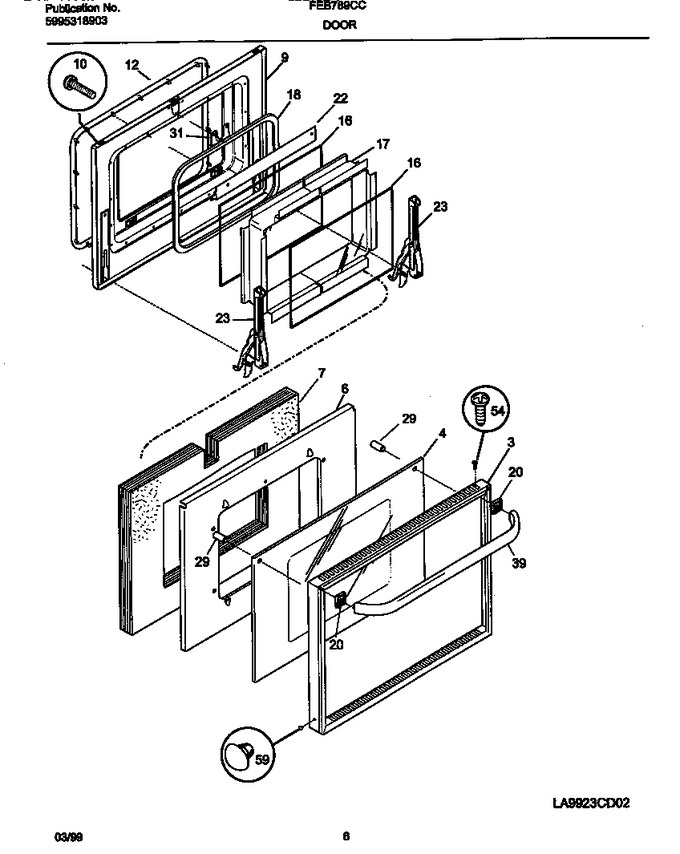

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026110		Trim-oven Door, White		Appelez-nous	-
4	318051601		Glass-oven Door, White, Outer		Appelez-nous	-
6	318073503		Shield-wool		Appelez-nous	-
7	5303311214		Insulation,oven Door		Appelez-nous	-
9	318048503		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
22	5303310511		Retainer-glass		Appelez-nous	-
23	318024701		Hinge-oven Door, (2)		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
39	316091107		Handle-door, White, Oven		Appelez-nous	-
54	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
59	3202113		Button, Plug		Appelez-nous	-
*10729	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*10730	5303300414		Spacer, Cork & Rubber				$ 13.18
*10731	5303323277		Screw (8-18x13/32)				$ 8.66
*10732	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*10733	08002868		Screw 10 X 24 X 1/2				$ 14.18
*10734	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*10735	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*10736	3051070		Screw 10-24 X 7/16,hex Washer Head ,10-24 X 7/16,special		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
