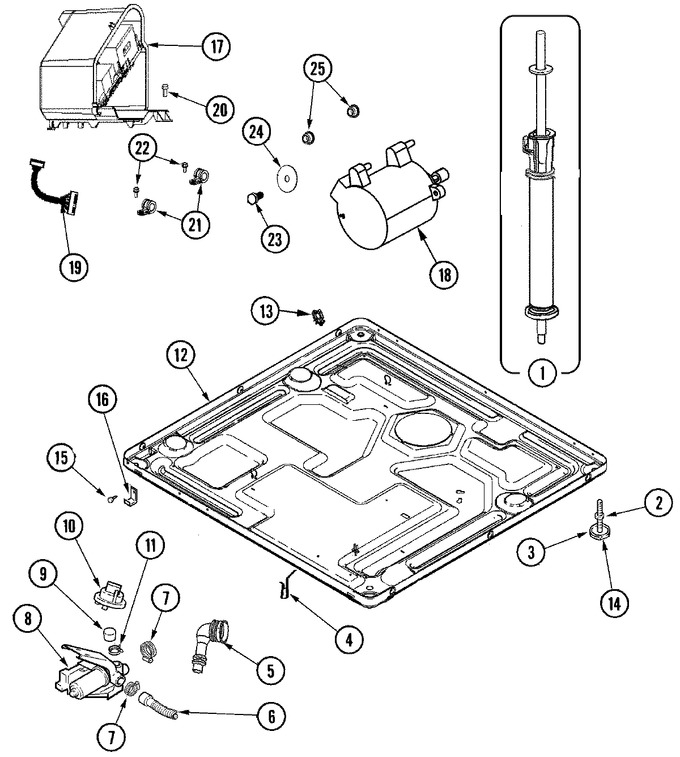

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22001988 | Strut Assy-rear | 10 |
|
$ 200.90 | ||||
| 2 | WP62739 | Nut (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 3 | WP8563585 | Adjustable Leg & Nut (Replaces: 22001915) | 10 |
|
Immediately | $ 13.28 | |||
| 4 | 22002244 | Clip, Grounding | 10 |
|
- | ||||
| 5 | 22003262 | Hose, Tub To Pump | 10 |
|
$ 27.27 | ||||
| 6 | 12001807 | Kit Nc, Drain Hose Replacement | 10 |
|
$ 49.51 | ||||
| 7 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 10 |
|
Immediately | $ 7.56 | |||
| 8 | WP25001052 | Pump Assembly (Replaces: 25001052) | 10 |
|
Immediately | $ 150.51 | |||
| 9 | 22003268 | Cap, Rubber | 10 |
|
$ 26.61 | ||||
| 10 | 22003265 | Bag, Plastic W/drawstring | 10 |
|
- | ||||
| 10 | 22003728 | Switch, Pressure | 17 |
|
$ 118.47 | ||||
| 10 | 22004500 | Switch, Pressure-2 Level | 18 |
|
- | ||||
| 10 | 22004500 | Switch, Pressure-2 Level | 15 |
|
- | ||||
| 10 | 22003728 | Switch, Pressure | 10 |
|
$ 118.47 | ||||
| 11 | WP285655 | Clamp, Hose (Replaces: 22002853) | 10 |
|
Immediately | $ 7.55 | |||
| 12 | 22003605 | Base Weld Assembly | 10 |
|
- | ||||
| 13 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 14 | WP210684 | Foot, Rubber (Replaces: 210684) | 10 |
|
Immediately | $ 14.09 | |||
| 15 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 17 | WP22004046 | Control Assy., Motor (Replaces: 22004046) | 10 |
|
$ 376.55 | ||||
| 17 | 22004473 | Motor Control Assembly | 14 |
|
$ 244.89 | ||||
| 17 | 22004473 | Motor Control Assembly | 12 |
|
$ 244.89 | ||||
| 17 | W11573574 | Screw (Replaces: 22001995) | 12 |
|
Immediately | $ 12.62 | |||
| 17 | WP22004046 | Control Assy., Motor (Replaces: 22004046) | 14 |
|
$ 376.55 | ||||
| 18 | 22003856 | Motor, Variable Speed | 10 |
|
$ 322.00 | ||||
| 19 | 22004212 | Motor Harness | 10 |
|
$ 86.76 | ||||
| 20 | 33002190 | Screw (no.10-3/8``) | 10 |
|
- | ||||
| 21 | 22004102 | P Clips | 10 |
|
- | ||||
| 22 | WP3351614 | Screw (Replaces: 22002019) | 10 |
|
Immediately | $ 6.26 | |||
| 23 | 22003686 | Bolt, Motor | 10 |
|
$ 6.14 | ||||
| 24 | 22002320 | Washer, Strut | 10 |
|
- | ||||
| 25 | 22003329 | Isolator, Motor | 10 |
|
$ 36.83 |
