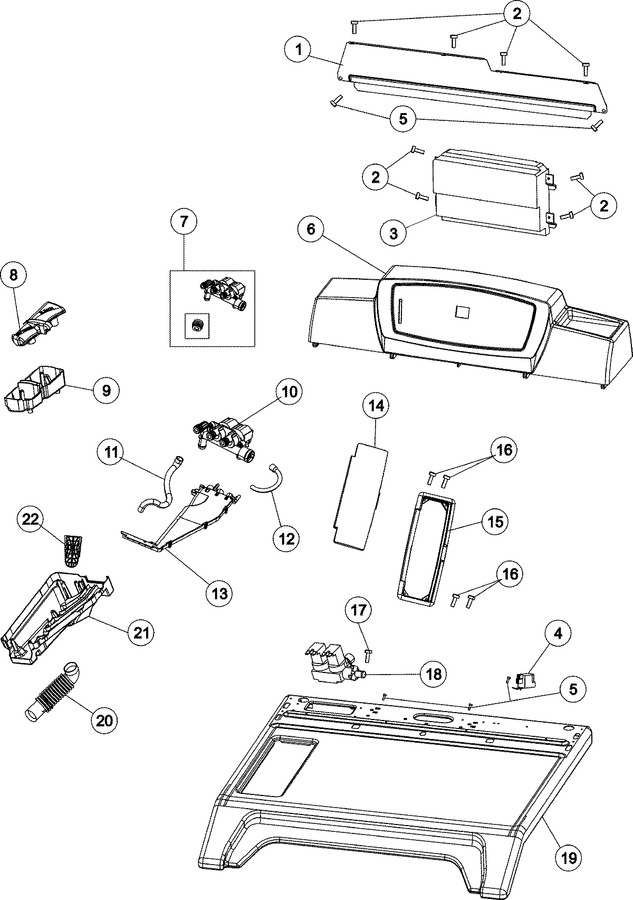

01 - Base With Motor


02 - Cabinet


03 - Control Panel & Top


04 - Front Panel, Door & Shroud


05 - Outer Tub


06 - Spinner Assy & Outer Tub Cover


07 - Supplemental Information


08 - Wiring Information


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003581		Back, Console Panel	10	Appelez-nous	-
2	WP9740848		Screw   (Replaces: 22002300)	10		Immediately	$ 7.07
3	22004482		Board, Control----sub	17	Appelez-nous	-
3	22004488		Control Board	18	Appelez-nous	-
3	22004488		Control Board	15	Appelez-nous	-
3	22004482		Board, Control----sub	10	Appelez-nous	-
4	22003854		Emi Suppression Filter, 12a	10	Appelez-nous	-
5	WP489128		Screw   (Replaces: 22002925)	10			$ 9.79
6	22004478		Console As Pack	10	Appelez-nous	-
7	12001930		Dispenser Valve Asy Kit	10			$ 178.80
8	22003849		Siphon Cap	10			$ 38.07
9	22003848		Siphon Cup	10			$ 28.35
10	12001930		Dispenser Valve   (Replaces: 22003846)	10			$ 178.80
11	22003833		Hose, Tub Shower	10			$ 69.09
11	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
12	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
12	22003832		Fill Hose, Dispenser	10			$ 48.05
13	22003845		Dispenser Cover (flume)	10	Appelez-nous	-
14	22004481		Lid, Dispenser	10			$ 21.46
15	22002290		Bezel, Dispenser (wht)	10			$ 30.56
16	W11772394		Screw, Dispenser Lid   (Replaces: 22003681)	10		Immediately	$ 10.94
17	WP489128		Screw, Serrated Washer Head Hx   (Replaces: 22003817)	10			$ 9.79
18	WP22003834		Water Valve W` Thermistor   (Replaces: 22003834)	10		Immediately	$ 136.93
19	22003584		Cover, Top (wht-as Pk)	10	Appelez-nous	-
20	WP616099		Clamp, Stepless   (Replaces: 22003627)	10		Immediately	$ 7.03
20	WP22002083		Hose, Injector   (Replaces: 22002083)	10			$ 124.55
21	22003844		Dispenser Bottom	10			$ 66.94
22	22002979		Cover, Outer Tub (asp)	10	Appelez-nous	-
