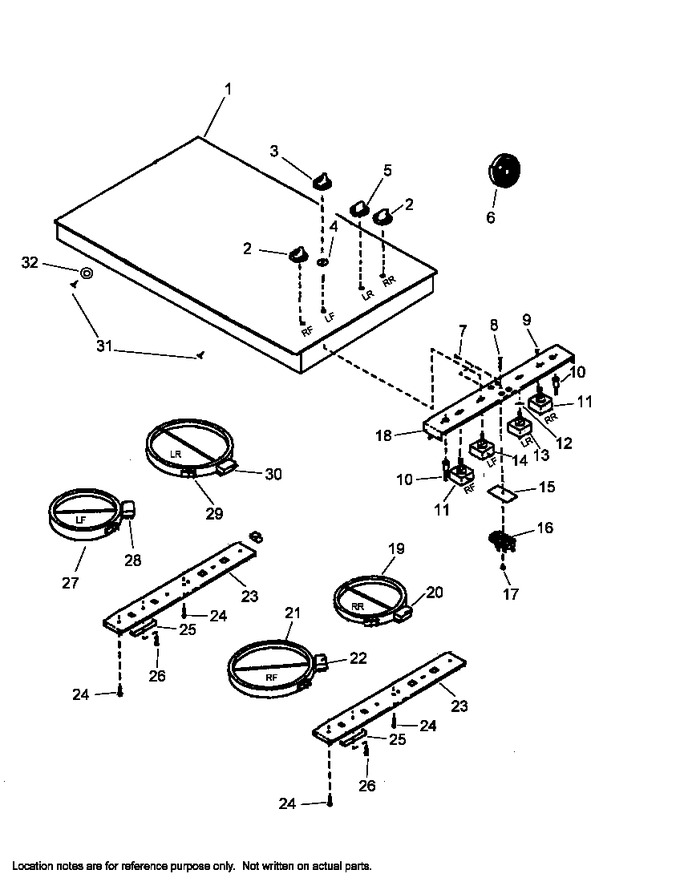

01 - Cooktop Assy


02 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309910W		Assy, 30`` Frame & Glass (wht)		Appelez-nous	-
2	314490W		Knob, Control (10 Pos)		Appelez-nous	-
3	314488W		Knob, Infinite Sw (white)		Appelez-nous	-
4	Y0307427		Cover, Hole-electric				$ 7.75
5	314489W		Knob, Dual Infin Sw (white)		Appelez-nous	-
6	M0275045		Tape Per Roll		Appelez-nous	-
7	M0211519		Screw		Appelez-nous	-
8	M0202521		Screw		Appelez-nous	-
9	0307428		Screw, Machine		Appelez-nous	-
9	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0307443)			Immediately	$ 6.47
10	Y0307458		Light, Indicator		Appelez-nous	-
11	Y0307429		Control, Surface		Appelez-nous	-
12	Y0041991		Switch Gasket Xet-490		Appelez-nous	-
13	0309550		Switch, Dual Infinite		Appelez-nous	-
14	Y0307359		Switch,inf(240tp-1244)		Appelez-nous	-
15	0307444		Insulation, Ind. Light		Appelez-nous	-
16	Y0307442		Light, Indicator		Appelez-nous	-
17	M0281002		Nut A		Appelez-nous	-
18	307423B		Bracket,cont Mtg.		Appelez-nous	-
19	Y0307432		Element, Haloring-1500 W		Appelez-nous	-
20	10061005		Element, Haloring-1500 W		Appelez-nous	-
21	Y0307433		Element, Haloring-1800 W		Appelez-nous	-
22	10061003		Limiter, Temp, Large		Appelez-nous	-
23	307425B		Bracket, Element		Appelez-nous	-
24	0306212		Screw, Shoulder		Appelez-nous	-
25	Y0306683		Spring, Element		Appelez-nous	-
26	Y0071914		Screw, Tt Ab No.8 X 3/8``		Appelez-nous	-
27	Y0314909		Element, Ribbon (1200 Watts)		Appelez-nous	-
28	10061016		Limiter		Appelez-nous	-
29	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0314899)				$ 308.80
30	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0316889)				$ 308.80
31	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
32	M0272803		Lock Washer		Appelez-nous	-
