01 - Cooktop Assy

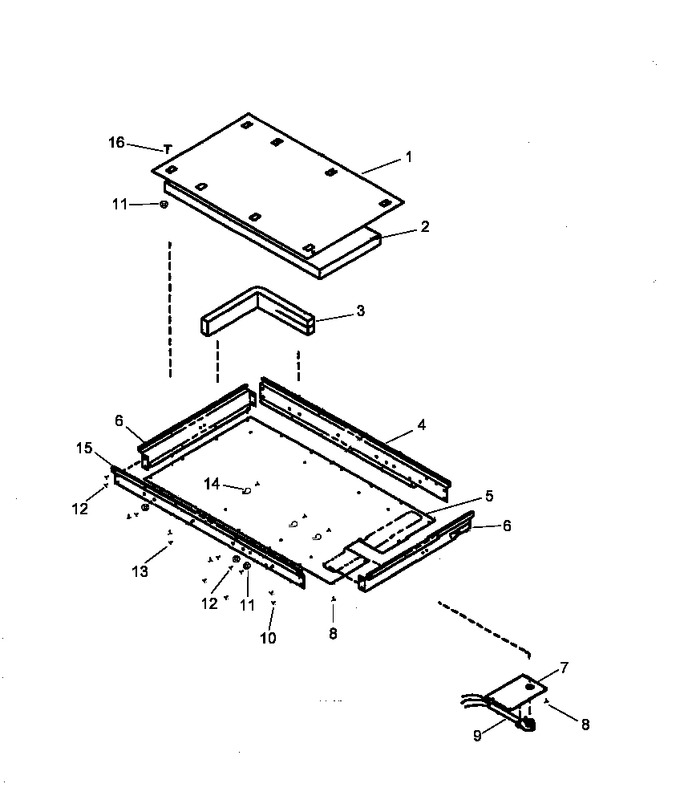

02 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307489B		Baffle, Heater Box		Appelez-nous	-
2	Y0307480		Insulation		Appelez-nous	-
3	0307479		Insulation		Appelez-nous	-
4	307613B		Side, Heater Box		Appelez-nous	-
5	307460B		Panel, Access		Appelez-nous	-
6	307476B		End, Heater Box		Appelez-nous	-
7	Y0307451		Plate, Conduit		Appelez-nous	-
8	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
9	Y0308396		Ass`y, Harness/conduit		Appelez-nous	-
10	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
11	M0272803		Lock Washer		Appelez-nous	-
12	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
13	M0218231		Screw, T.c., Curtain		Appelez-nous	-
14	Y0307456		Clamp, Tube (1/2``)		Appelez-nous	-
15	307419B		Side, Heater Box		Appelez-nous	-
16	Y0307447		Pop Rivet K		Appelez-nous	-
16	Y0307461		.187 Dia Pop Rivet Steel		Appelez-nous	-
NI	0306381		Hex Nut No.10-32 Nickel		Appelez-nous	-
NI	0307428		Screw, Machine		Appelez-nous	-
NI	M0227817		Screw		Appelez-nous	-
