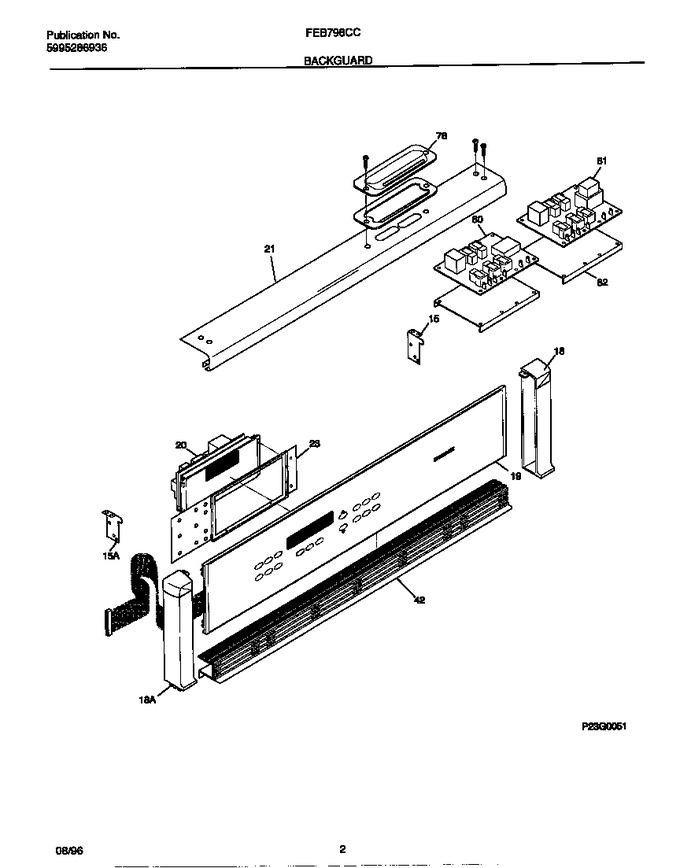

02 - Backguard


03 - Lower Body


04 - Upper Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302287		Support-backguard, Lh		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311225		End Cap, Almond, Rh		Appelez-nous	-
18	5303311226		End Cap, Almond, Lh		Appelez-nous	-
19	318030017		Panel-control, Almond		Appelez-nous	-
20	318010501		Clock/timer, Eoc				$ 666.75
21	5303317307		Screw, Top Trim, 6-32 X 3/8, Almond, (2) (not Illustrate		Appelez-nous	-
21	318028100		Trim-canopy/shield, Almond		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	5303303417		Trim-vent,almond		Appelez-nous	-
78	318037000		Cover, Oven Vent, Almond		Appelez-nous	-
80	318022001		Board-relay			Immediately	$ 489.91
81	318022002		Board-relay, Transformer				$ 482.74
*47280	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*47281	5303300414		Spacer, Cork & Rubber				$ 13.18
*47282	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*47283	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
82A	318023600		Support, Relay Board, (2)		Appelez-nous	-
82B	5303317199		Support, Snap-in, (16) (not Illustrated)				$ 36.75
