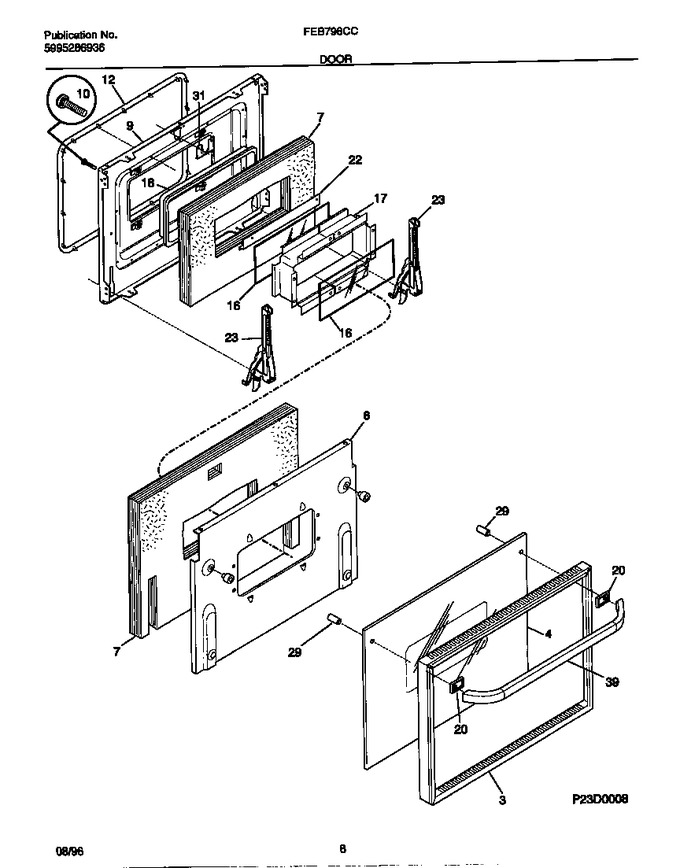

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026111		Trim-oven Door, Almond		Appelez-nous	-
4	318051602		Glass-oven Door, Almond, Outer		Appelez-nous	-
6	318073501		Baffle-door		Appelez-nous	-
7	5303311214		Insulation, Oven Back/door		Appelez-nous	-
9	318048503		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318014302		Spacer,handle ,almond ,(2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
39	316091108		Handle-door,almond ,oven		Appelez-nous	-
*47289	3202113		Button, Plug		Appelez-nous	-
*47290	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*47291	5303300414		Spacer, Cork & Rubber				$ 13.18
*47292	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*47293	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*47294	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*47295	5303316982		Tape, Seal, (3)		Appelez-nous	-
23A	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
