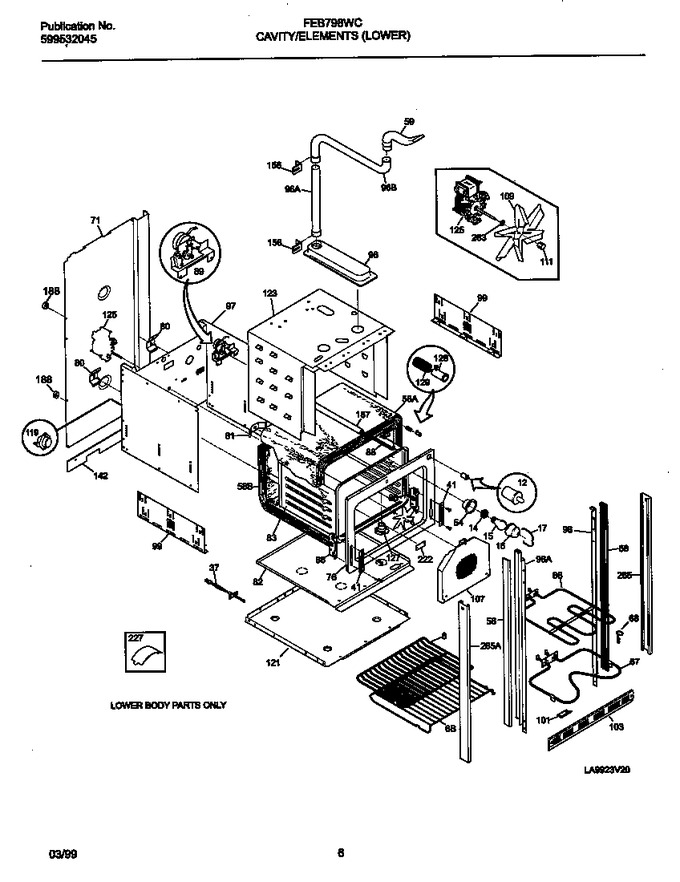

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Upper Body


04 - Lower Body


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318025200		Shelf,oven		Appelez-nous	-
6	318025300		Rack,oven		Appelez-nous	-
12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer Lenz		Appelez-nous	-
37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	318145515		Trim-bodyside,(2)		Appelez-nous	-
57	318072100		Plate,connection		Appelez-nous	-
58	5303311218		Insulation, Oven Wrapper		Appelez-nous	-
58	5303311219		Insulation, Oven Top/back		Appelez-nous	-
59	3016331		Tube,oven Vent		Appelez-nous	-
66	5303322963		Element-broil		Appelez-nous	-
67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
68	5304403015		Support-element				$ 35.04
71	5303305023		Shield-wire		Appelez-nous	-
76	318056104		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303320846		Plate,oven Mtg				$ 51.50
82	5303304699		Shield-insulation		Appelez-nous	-
83	318089519		Liner-oven Assy				$ 228.80
86	5303310524		Channel-hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
89	5304409801		Motor-latch		Appelez-nous	-
96	5303317197		Duct,oven Vent ,assy		Appelez-nous	-
96	3016325		Duct,oven Vent ,center		Appelez-nous	-
96	3016327		Duct-vent Pipe		Appelez-nous	-
97	318066604		Wrapper,back & Sides		Appelez-nous	-
98	318029310		Trim-side,inner,rh		Appelez-nous	-
98	318029311		Trim-side,inner,lh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
101	318039501		Bracket-trim		Appelez-nous	-
103	5303316773		Trim-base, Black				$ 80.22
107	5303318711		Cover,fan		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
119	318004900		Switch,thermal				$ 60.25
121	318145002		Wrapper,base		Appelez-nous	-
123	318071440		Shield-insulation,top & Bottom		Appelez-nous	-
125	5303311202		Motor-convection				$ 114.07
127	318072801		Adaptor Assy		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
156	318024100		Bracket-vent Tube		Appelez-nous	-
156	5303317198		Bracket-oven Vent		Appelez-nous	-
187	318013501		Tube, Rod-latch		Appelez-nous	-
188	08007817		Spacer, (2)		Appelez-nous	-
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
227	5303323955		Clip-retainer		Appelez-nous	-
263	5303322885		Spacer		Appelez-nous	-
265	318029503		Trim-bodyside,stainless ,outer,lh		Appelez-nous	-
265	318029502		Trim,bodyside ,stainless ,outer,rh		Appelez-nous	-
*30609	318120702		Switch-latch				$ 111.67
*30610	318120701		Switch		Appelez-nous	-
*30611	3015722		Clip-wire		Appelez-nous	-
*30612	5303302745		Screw <10-16x-1-1/8>				$ 8.35
*30613	08002868		Screw 10 X 24 X 1/2				$ 14.18
*30614	318054900		Support		Appelez-nous	-
*30615	318055200		Support		Appelez-nous	-
*30616	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*30617	5303324184		Screw-8 X 5/16			Immediately	$ 14.18
*30618	5303304015		Washer, Padded		Appelez-nous	-
*30619	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*30620	5303323277		Screw (8-18x13/32)				$ 8.66
*30621	5303323136		Screw-ground		Appelez-nous	-
*30622	5303323139		Screw,10-24 X 29/32				$ 13.46
*30623	5304407813		Washer		Appelez-nous	-
