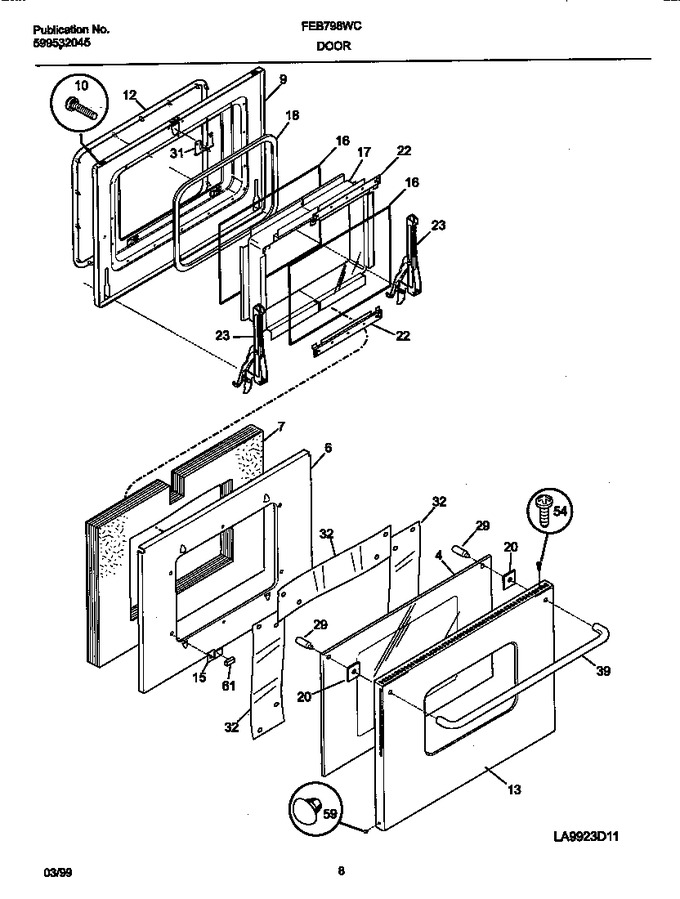

05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318071000		Back,main ,upper		Appelez-nous	-
2	318070201		Shield-oven Top		Appelez-nous	-
3	318070601		Panel,bodyside ,upper,rh		Appelez-nous	-
3	318070600		Panel,bodyside ,upper,lh		Appelez-nous	-
6	318025200		Shelf,oven		Appelez-nous	-
6	5303311206		Rack, Broiler Pan		Appelez-nous	-
6	318025300		Rack,oven		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer Lenz		Appelez-nous	-
37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
57	318072100		Plate,connection		Appelez-nous	-
58	5303311218		Insulation, Oven Wrapper		Appelez-nous	-
58	5303311219		Insulation, Oven Top/back		Appelez-nous	-
59	318072511		Tube-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
66	5303322963		Element-broil		Appelez-nous	-
67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
68	5304403015		Support-element				$ 35.04
76	318056104		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303320846		Plate,oven Mtg				$ 51.50
83	318089519		Liner-oven Assy				$ 228.80
86	5303310524		Channel-hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
89	5304409801		Motor-latch		Appelez-nous	-
97	318066500		Wrapper, Back & Sides		Appelez-nous	-
107	5303318711		Cover,fan		Appelez-nous	-
108	318073000		Motor-blower		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
110	5303322885		Spacer		Appelez-nous	-
111	5303311205		Nut-fan Retainer		Appelez-nous	-
119	318005200		Switch-thermal, Lower		Appelez-nous	-
123	318071440		Shield-insulation,top & Bottom		Appelez-nous	-
125	5303311202		Motor-convection				$ 114.07
127	318317100		Adapter Assy   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
157	318071600		Divider, Upper Oven		Appelez-nous	-
187	318013501		Tube, Rod-latch		Appelez-nous	-
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
227	5303323955		Clip-retainer		Appelez-nous	-
264	318143811		Xx<hidden Wires Shie		Appelez-nous	-
*30624	318120702		Switch-latch				$ 111.67
*30625	318120701		Switch		Appelez-nous	-
*30626	318078501		Box & Wires Assy		Appelez-nous	-
*30627	08002868		Screw 10 X 24 X 1/2				$ 14.18
*30628	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*30629	5303323136		Screw-ground		Appelez-nous	-
*30630	5303323139		Screw,10-24 X 29/32				$ 13.46
*30631	3051070		Screw 10-24 X 7/16,hex Washer Head ,10-24 X 7/16,special		Appelez-nous	-
*30632	5303308449		Fastener		Appelez-nous	-
*30633	5303323137		Screw,10-32 X 17/32				$ 11.88
