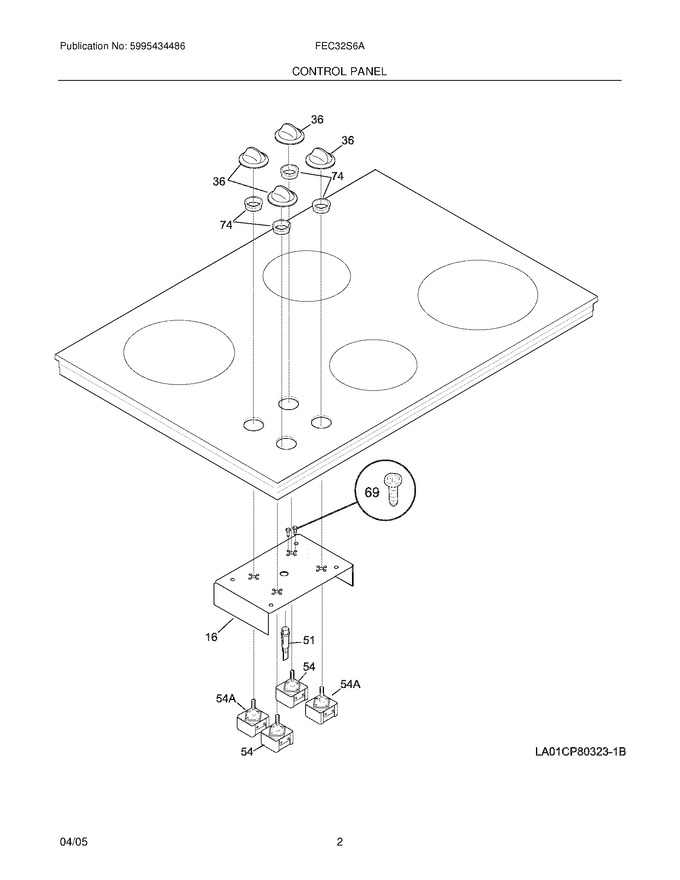

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318096300		Plate, Instrument Mtg		Appelez-nous	-
36	318196633		Knob,control ,white				$ 62.95
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
74	318148900		Bushing,switch				$ 54.92
F51	318044820		Light,indicator ,red		Appelez-nous	-
F54	318293824		Switch,surface Unit ,small   (Replaces: 318220071)			Immediately	$ 97.07
F54A	318293825		Switch,surface Unit ,large   (Replaces: 318220072)			Immediately	$ 99.10
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
