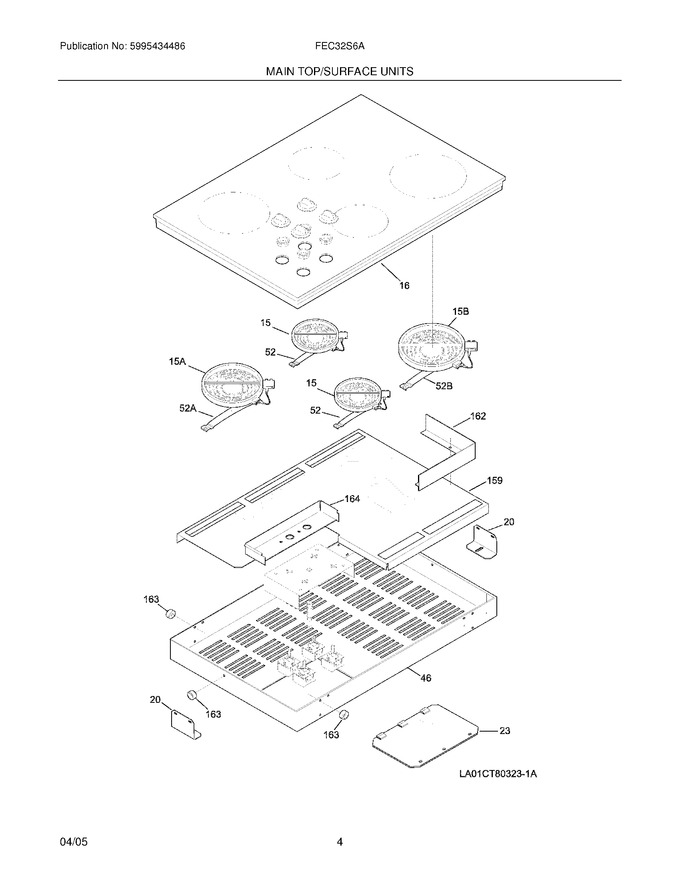

05 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079349		Main Top Assy,glass/steel ,white		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	5303297401		Panel,service		Appelez-nous	-
46	318077201		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125101		Deflector		Appelez-nous	-
162	318125200		Deflector		Appelez-nous	-
163	318531702		Spacer   (Replaces: 318014110)				$ 9.93
164	318125302		Plate,connection		Appelez-nous	-
52A	318122007		Spring,element Mtg ,large				$ 53.45
52B	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
F15	318198817		Element,surface ,small/6`` ,1200 W			Immediately	$ 192.78
F15A	903118-9010		Element,surface ,large/8`` ,2200 W   (Replaces: 318198818)			Immediately	$ 236.18
F15B	318198819		Element,surface ,9`` ,2500 W				$ 256.01
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078525		Box & Wires Assy		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
