Diagram # Part Number Description Series Availability Ships Price Add to Cart
16 5303291327 Housing Switch Appelez-nous -
19 318021002 Overlay Panel White Appelez-nous -
23 5303207967 Seal Switch Protection Appelez-nous -
36 318164500 Knob-surface White Special Order $ 91.30

46 318228310 Lens-light   (Replaces: 5303297274) In-Stock Immediately $ 22.91

51 5303325854 Light-indicator Appelez-nous -
54 318120509 Switch-surface Unit, Small Appelez-nous -
69 5303288565 Screw, 8-32 X 3/16   (Replaces: 5303323134) Special Order $ 3.12

107 5303325928 Housing Feed Appelez-nous -
108 5303325931 Housing,bottom Slide Appelez-nous -
163 318014100 Spacer Appelez-nous -
*25840 5303311306 Screw,8-18 X 0.375 Appelez-nous -
*25841 3051070 Screw,10-24 X 7/16 Appelez-nous -
*25842 5303311532 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

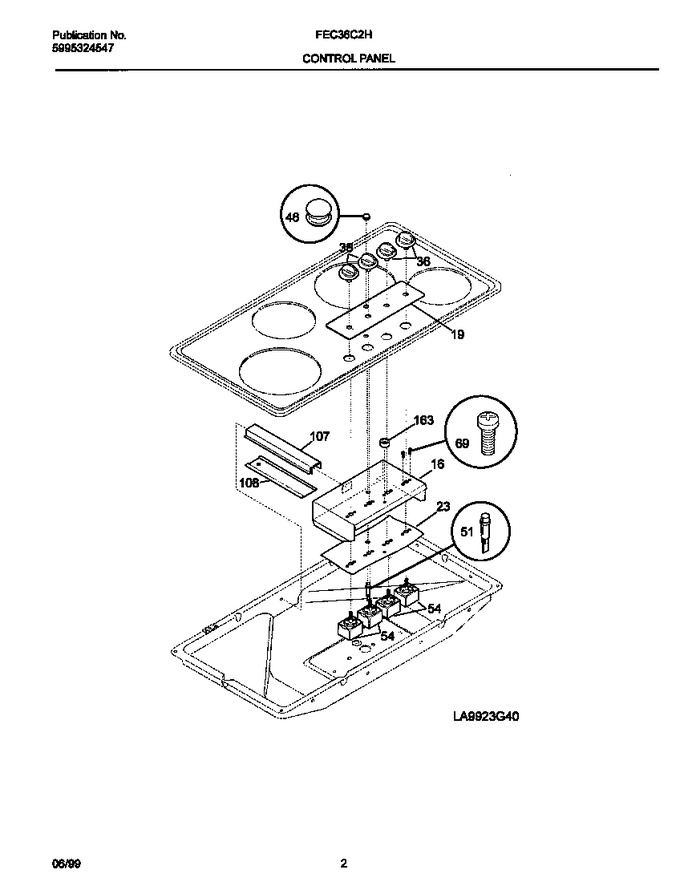

Diagram for FEC36C2HSA
